What is an Electrical Conduit?
Electrical conduits are utilized to protect & route electrical wiring in
- Residential,
- Commercial and
- Industrial projects.
They are accessible in a wide range of materials & constructions each customized to a specific uses based on the environmental factors, safety standards & mechanical strength.
- What is an Electrical Conduit?
- Types of Electrical Conduit
- 1). EMT Conduit (Electrical Metallic Tubing)
- 2). IMC Conduit (Intermediate Metal Conduit)
- 3). PVC Conduit (Rigid PVC Conduit)
- 4). RMC Conduit (Rigid Metal Conduit)
- 5). LSZH Conduit (Low Smoke, Zero Halogen Conduit)
- 6). RTRC Conduit (Reinforced Thermosetting Resin Conduit)
- 7). ENT Conduit (Electrical Non Metallic Tubing Conduit)
- 8). HDPE Conduit (High Density Polyethylene Conduit)
- 9). LFMC Conduit (Liquid Tight Flexible Metal Conduit)
- 10). FMC Conduit (Flexible Metal Conduit)
- 11). LFNC Conduit (Liquid Tight Flexible Non Metallic Conduit)
- Conclusion
Choosing the appropriate conduit that assures longevity, safety & compliance with the electrical requirements.

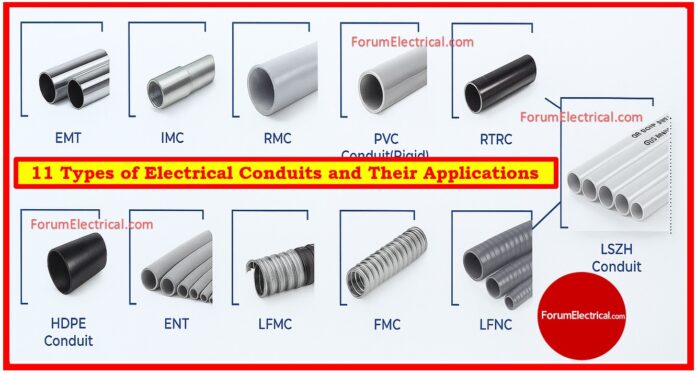

Types of Electrical Conduit
There are 11 basic types of electrical conduits are described in detail below along with their applications and appropriate projects:
1). EMT Conduit (Electrical Metallic Tubing Conduit)
2). IMC Conduit (Intermediate Metal Conduit)
3). PVC Conduit (Rigid PVC Conduit)
4). RMC Conduit (Rigid Metal Conduit)
5). LSZH Conduit (Low Smoke, Zero Halogen Conduit)
6). RTRC Conduit (Reinforced Thermosetting Resin Conduit)
7). ENT Conduit (Electrical Non Metallic Tubing Conduit)
8). HDPE Conduit (High Density Polyethylene Conduit)
9). LFMC Conduit (Liquid tight Flexible Metal Conduit)
10). FMC Conduit (Flexible Metal Conduit)
11). LFNC Conduit (Liquid Tight Flexible Non Metallic Conduit)
1). EMT Conduit (Electrical Metallic Tubing)
Description
Electrical Metallic Tubing (EMT) is a lightweight, galvanized metal pipe that may be easily bent and installed.
EMT is thinner than rigid conduits but yet provides enough protection for conductors.
Usage
It is typically utilized in interior places that require mechanical protection but have low environmental exposure.
EMT is not suited for use in outdoor or corrosive conditions unless properly prepared.
Applicable Projects
EMT is commonly used in administrative buildings, shopping malls and hospitals for electrical distribution and concealed wiring.
2). IMC Conduit (Intermediate Metal Conduit)
Description
The Intermediate Metal Conduit (IMC) is a medium-thick galvanized metal conduit with higher strength than EMT but lighter than RMC.
It strikes a balance across durability & ease of use.
Usage
IMC is appropriate for outdoor and subsurface installations, especially when coated with corrosion-resistant coatings.
It is a viable choice when more protection is necessary.
Applicable Projects
IMC is commonly used in
- Transformer stations,
- Industrial enterprises and
- Outdoor parking lots.
3). PVC Conduit (Rigid PVC Conduit)
Description
Rigid PVC conduit is
- Lightweight,
- Corrosion-resistant and
- Cost-effective.
It comes in a variety of thicknesses and sizes to fit different requirements.
Usage
PVC conduit is ideal for
- Moist environments,
- Underground applications and
- Concealed installations.
When exposed to sunshine, it is necessary to use UV protection.
Applicable Projects
This type of conduit is commonly utilized in
- Residential constructions,
- Garden additions,
- Flooring, and
- Wall-mounted systems.
4). RMC Conduit (Rigid Metal Conduit)
Description
RMC is the most durable and heavy-duty type of metal conduit.
It is built of strong galvanized steel or aluminium and offers superior mechanical protection.
Usage
RMC is ideal for severe and demanding settings particularly those with significant mechanical stress (or) underground exposure.
Applicable Projects
This product is commonly used in infrastructure projects such as
- Tunnels,
- Airports &
- Power plants to ensure cable protection.
5). LSZH Conduit (Low Smoke, Zero Halogen Conduit)
Description
The Low Smoke Zero Halogen (LSZH) conduit consists of a specific plastic material that does not emit harmful gases (or) heavy smoke during fire occurrences.
Usage
Ideal for fire-sensitive and enclosed locations with high occupant safety requirements.
Applicable Projects
LSZH conduits are commonly utilized in
- Metro tunnels,
- Server rooms,
- Hospitals and
- Airports
to provide fire safety in public areas.
6). RTRC Conduit (Reinforced Thermosetting Resin Conduit)
Description
Reinforced Thermosetting Resin Conduit (RTRC) is a fiberglass-reinforced plastic conduit with strong resistance to chemicals and also corrosion.
Usage
RTRC is utilized in industrial applications with a high chemical exposure & environmental stress levels.
It combines strength, durability and light weight.
Applicable Projects
It is often used in
- Chemical factories,
- Water treatment facilities and
- Coastal areas
where typical metal conduits can fail.
7). ENT Conduit (Electrical Non Metallic Tubing Conduit)
Description
Electrical Non Metallic Tubing (ENT) is a lightweight, corrugated and flexible plastic conduit that allows for quick and easy installation.
Usage
ENT is used for concealed wiring in walls, partitions and ceilings. It is unsuitable for outdoor (or) high-stress settings.
Applicable Projects
This type is commonly used in new residential structures, schools and office buildings.
8). HDPE Conduit (High Density Polyethylene Conduit)
Description
HDPE conduit is a flexible plastic pipe that is highly durable and impact-resistant.
It is especially beneficial for long-distance underground applications.
Usage
HDPE is ideal for direct burial & under-road installations due to its flexibility and ease of pulling large wires.
Applicable Projects
Applications include
- Communications networks,
- Medium and low voltage underground cable systems.
9). LFMC Conduit (Liquid Tight Flexible Metal Conduit)
Description
The Liquid tight Flexible Metal Conduit (LFMC) has a flexible metal core and a waterproof outer layer, making it both flexible and water-resistant.
Usage
LFMC is suitable for installations exposed to moisture, oil & weather. It is commonly used in mechanical & electrical equipment connections that require water resistance.
Applicable Projects
Applications include
- Water pumping stations,
- Sewage plants and
- Rooftops with frequent exposure to water.
10). FMC Conduit (Flexible Metal Conduit)
Description
Flexible Metal Conduit (FMC) is a corrugated metal conduit that gives flexibility without requiring any additional waterproofing.
Usage
FMC is commonly used for short connections between fixed equipment, lighting fixtures and switchboards in dry and protected settings.
Applicable Projects
Typical applications include
- Factories,
- Industrial machinery and
- Lighting installations.
11). LFNC Conduit (Liquid Tight Flexible Non Metallic Conduit)
Description
LFNC (Liquid tight Flexible Non Metallic Conduit) is a lightweight, flexible plastic conduit with waterproof qualities that replaces LFMC.
Usage
LFNC is ideal for humid and damp settings protecting against water penetration and being easy to install.
Applicable Projects
Applications include
- Swimming pools,
- Agriculture and
- Outdoor air conditioning.
Conclusion
The appropriate electrical conduit is chosen based on environmental circumstances, safety standards, mechanical strength & project type.
EMT and FMC are widely employed in interior dry settings but RMC, IMC and LFMC are more applicable for severe outdoor or industrial conditions.
PVC, ENT, and HDPE conduits are affordable options for residential & underground installations.
Meanwhile, RTRC and LSZH conduits meet specific requirements in chemical, corrosive & fire-sensitive applications.
