Insulation resistance (IR) testing commonly called a Megger test is an essential preventive maintenance procedure for high voltage (HV) motors.
These motors typically rated above 1 kV (such as 3.3 kV, 6.6 kV or 11 kV) operate in important industrial and marine applications where insulation failure can result in severe equipment damage, costly downtime and hazardous conditions.
Because high voltage (HV) systems present significant risk, strict safety practices should be followed at all times during testing.
Megger testing used to verify the condition of motor winding insulation by applying a controlled DC voltage and measuring the resistance (IR) between conductors & ground.
A properly executed test helps to identify the insulation deterioration, moisture contamination and carbon tracking (or) early-stage winding faults.
Purpose
The primary purpose of insulation resistance testing is to:
• Evaluate the condition of motor winding insulation.
• Detecting moisture ingress (or) contamination.
• Identify insulation deterioration or grounding faults.
• Prevent unexpected breakdown and downtime.
• Ensure safe operation before energizing the motor.
Megger testing also establishes a baseline data for the future comparison.
Scope
This procedure applies to all high voltage motors installed in industrial plants, offshore platforms, marine vessels, power stations and heavy process industries.
It is suitable for
• Squirrel cage induction motors,
• Synchronous motors and
• Other HV rotating machines.
The procedure must be performed during commissioning, scheduled maintenance outages, after long shutdowns and following repair work.
Safety Requirements
Working with high voltage equipment requires extreme caution.
• All applicable lock-out/tag-out (LOTO) procedures should be strictly followed.
• The motor must be completely isolated from the power system before testing. This includes opening the feeder breaker (or) contactor, racking it out if applicable and ensuring that remote control circuits are disabled.
• The equipment should be treated as energized until proper isolation and visible grounding have been verified.
• Before touching any terminals, absence of voltage should be confirmed using an approved high voltage detector.
• The tester must be function tested both before and after verifying voltage absence to ensure reliability.
• Proper personal protective equipment (PPE) including insulated gloves and arc-rated clothing must be worn.
Test Equipment
• 5 kV (or) 10 kV Insulation Resistance Tester (Megger)
• High Voltage tester (voltage detector)
• PPE (insulated gloves, face shield, arc-rated clothing)
• Lock-out / Tag-out (LOTO) devices
• Grounding rods and cables
• Approved HV interlock keys
Applicable Standards
This procedure follows with commonly accepted standards:
• IEC 60034 – Rotating Electrical Machines
• IEEE 43 – Recommended Practice for testing Insulation Resistance of Rotating Machinery
• IEC 61936 – Power Installations exceeding 1 kV AC
• Shipboard HV safety procedures (as applicable)
Pre-Test Preparation
• Before conducting the test the motor must be fully isolated from the electrical system.
• All incoming supply cables must be disconnected (or) safely isolated.
• If the motor is connected through a withdrawable breaker (or) contactor, it should be placed in the test (or) withdrawn position.
• Any grounding switches must be operated according to site safety procedures.
• All motor terminals should initially be grounded to discharge any trapped charge.
• After verifying that the motor is completely de-energized remove the terminal box cover and inspect for signs of moisture, contamination (or) physical damage.
Points to Remember
It is important to remember that high voltage (HV) equipment must always be considered live until visible grounding has been established and verified.

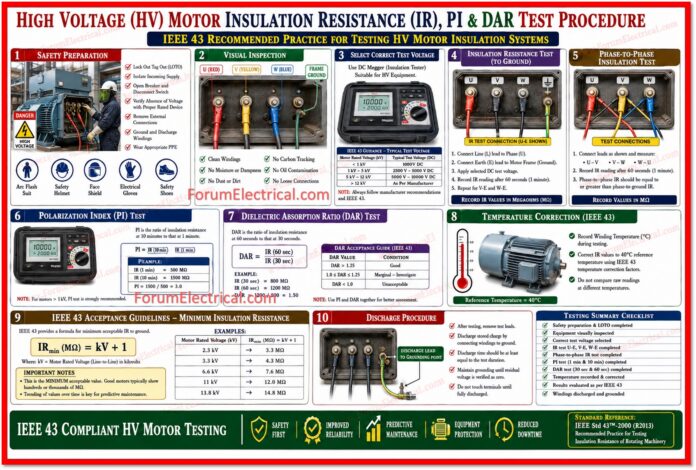

Test Procedure
Step-1: Once isolation and safety checks are complete remove temporary grounding connections before applying the megger voltage.
Step-2: After removing the earth connection the terminals should again be treated as potentially energized since they are no longer grounded.

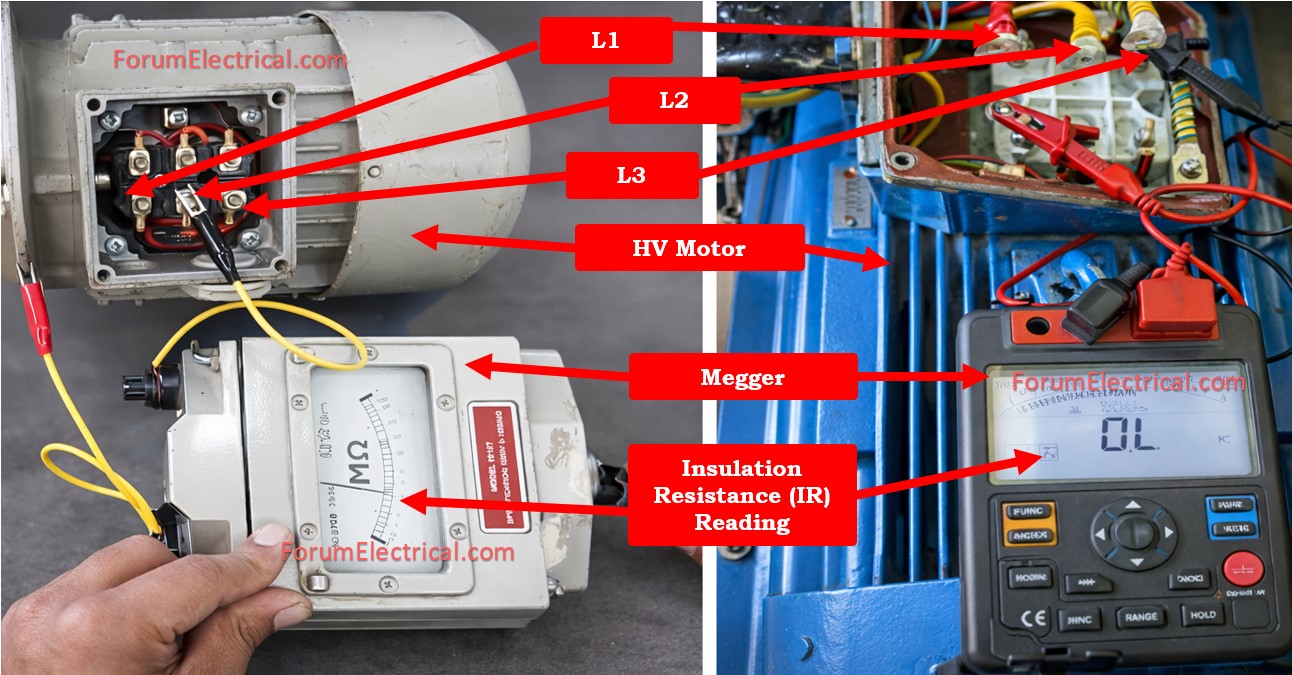

Step-3: Connect one terminal of the megger to the motor frame (earth) and the other terminal to one phase conductor typically starting with Phase L1.
Step-4: Apply the recommended DC test voltage and record the insulation resistance (IR) value after the specified time interval, usually one minute.
Step-5: After recording the reading, discharge the winding to ground to remove any stored charge.
Step-6: Repeat the same procedure for the remaining phases (L2 and L3) ensuring that only one phase is tested at a time while the others remain isolated as required.
Step-7: For more detailed diagnostic testing, phase-to-phase insulation resistance (IR) measurements shall also be performed if specified by preventive maintenance procedures.
Test Voltage Selection
The test voltage must be appropriate for the motors rated voltage.
Example: Motors rated between 2.4 kV and 7.2 kV are typically tested at 5 kV DC while higher voltage (HV) machines may require 10 kV DC testing. The applied voltage should never be exceeded than the manufacturer’s specified limit.
Documentation
Accurate documentation is more essential for a proper analysis.
Record the motor nameplate data including rated voltage, horsepower (HP), serial number and manufacturer.
Note down the ambient temperature, winding temperature (if available) & relative humidity at the time of testing.
The recorded insulation resistance (IR) values should be corrected to a standard reference temperature typically 40°C (or) 20°C in accordance with IEEE 43 guidelines.
Maintaining historical records allows in comparison with the previous results and supports accurate analysis.
Results
Insulation resistance (IR) values may vary depending on the motor size & design.
As a general guidelines, the minimum acceptable insulation resistance (IR) in megaohms (MΩ) is approximately equal to the motor rated voltage in kV+1.
However, modern motors in good condition typically exhibit values significantly higher than the minimum threshold.
A sudden decrease in insulation resistance (IR) compared to previous readings may indicate moisture ingress, contamination (or) insulation breakdown.
If both insulation resistance (IR Value) and capacitance (if measured) increase abnormally this may suggest water contamination.
Consistent series measurement of results is more reliable than depending on a single measurement.
Post Test Procedure
• After completing all measurements discharge all windings thoroughly to ground.
• Reconnect all previously disconnected cables, restore grounding arrangements to their normal configuration and ensure that terminal box covers are properly secured.
• Remove all lock-out/tag-out devices only after confirming that the system is ready for safe energization.
• Ensure that all tools and test equipment have been removed from the work area before restoring power.
Conclusion
The HV motor megger test is an essential preventive maintenance procedure used to verify insulation integrity and prevent catastrophic motor failure.
Because high voltage (HV) systems have significant hazards, strict adherence to isolation, grounding, verification and documentation procedures is mandatory.
