Solar photovoltaic (PV) inverters convert direct current (DC) from solar panels into alternating current (AC) appropriate for the electrical grid. Most modern inverters control voltage and frequency by Pulse Width Modulation (PWM) switching mechanisms.
However, PWM switching adds high-frequency noise & harmonic distortions to the AC output.
These harmonic components may cause grid equipment to overheat, interfere with sensitive electronics and reduce overall power quality.
To provide a pure sinusoidal AC output, inverters use LC Filters which are made up of
- Inductor (L) and
- Capacitor (C)
designed to filter out undesired switching frequencies.
This reduces total harmonic distortion (THD) and assures compliance with grid standards such as IEEE 519 & IEC 61000.
Working Principle of LC Filters in Solar Inverters

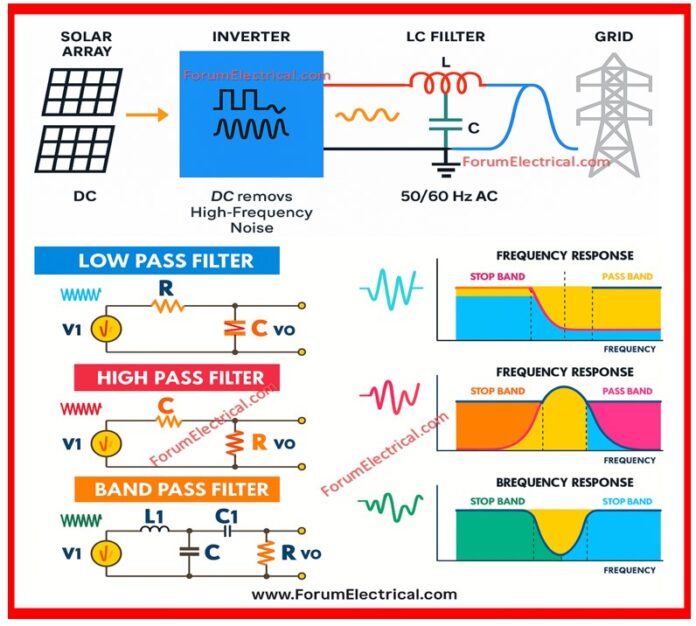

LC filters act as low-pass filters enabling the fundamental 50/60 Hz AC to pass but rejecting high-frequency components generated during switching.
Function of Inductor (L)
The inductor is connected in series to the inverter output.
1). Inductors prevent rapid fluctuations in current.
2). Impedance increases with their frequency.
XL =2πfL
Functions
Blocks high-frequency switching spikes
It also normalizes the current waveform
It lowers ripple and noise in the output current
Thus, the inductor assures that the grid receives only slow-varying and low-frequency current (pure AC).
Function of Capacitor
The capacitor is linked in parallel with the load, or neutral/ground.
1). Capacitors oppose voltage changes.
2). Impedance decreases with frequency.
XC = 1/2𝜋fC
Functions
Removes high-frequency content
Reduces voltage spikes & ripple
Smoothes PWM waveform edges.
The capacitor contributes to a stable & clean voltage waveform.
LC Combination = Effective Low-Pass Filtering
When combined, L and C form a frequency-selective filter:
| Frequency Component | Performance in LC Filter |
| 50/60 Hz Fundamental | Passes smoothly |
| High-frequency switching harmonics | Blocked or attenuated |
This converts the PWM output into the smooth sinusoidal AC needed for grid-tie applications.
Transfer Function Perspective
The cutoff frequency is is aimed to ensure that:
fc = 1/2 𝜋√LC
Any harmonics that exceed this cutoff are considerably attenuated.
Importance of LC Filters in Solar Inverters
- Lower THD and compliance with grid standards.
- Smooth sinusoidal AC results reduced electrical stress,
- Improved power quality helps in improved grid interaction.
- Less heat in transformers and motors provide increased equipment life.
- Reduced electromagnetic interference gives improved performance of electronics.
- Improved inverter efficiency provide higher energy yield.
LC filters are extremely important in grid-connected PV systems where power quality is closely monitored.
LC Filters are utilized in PV Systems in output stage for string inverters, central and hybrid inverters and also for microinverters with high-frequency switching and systems with transformers or extensive cable runs.
Design Aspects of LC Filter
When building an LC filter, engineers must consider:
1). Switching frequency of the inverter.
2). Grid impedance
3). Filter resonance difficulties.
4). Component Heating & Current Rating
5). Protection against overvoltage and overcurrent.
6). EMI/EMC Compliance.
Additional dampening circuits (Eg: RLC or LLCL filters) can be used to control resonance.
Conclusion
High-frequency switching is required for modern solar inverters to perform efficiently; nevertheless, it produces noise & harmonic distortions that cannot be sent to the grid.
LC filters function as low-pass filters removing undesirable components and providing a pure sinusoidal AC signal.
LC filters improve power quality, reduce equipment stress and increase overall system efficiency all of which contribute to the safe and reliable integration of solar electricity into the electrical grid.
