Battery Load Test
Battery performance is essential to the safe functioning of electrical and electronic systems.
Regular testing helps to detect weak, damaged (or) underperforming batteries before they fail in service.
This post explains a systematic approach to checking, charging & load testing batteries to assess their condition and whether they may be safely returned to operation or need to be replaced.
Safety Precautions
Always wear personal protection equipment (PPE) such as goggles and gloves.
Be careful, as batteries may explode during load testing because of gas development. Maintain appropriate ventilation and follow regular safety procedures.
Step-1: Visual Inspection
Battery testing starts with a thorough visual inspection to identify any evident physical faults that might affect performance or safety.
The battery’s surface is examined for leaks, cracks, bulges (or) broken connections, which typically signal that the battery has attained the final stage of its service life & must be replaced promptly.
The electrolyte level in every cell is checked to ensure that it is within the recommended range.
If the level falls below the specified level, distilled water is supplied to replenish it.
At this point, the battery is recharged to restore its chemical equilibrium before proceeding with additional testing.
Start with a careful visual evaluation of the battery.
Check for:
- Leaks and electrolyte seepage
- Bulges or bulging in the case.
- Broken connections or connectors.
If any of these faults exist, the battery needs to be changed immediately since it constitutes a safety concern.
Step-2: Electrolyte Level Check
Temperature significantly affects
- Battery performance and
- Specific gravity values.
Therefore, before final interpretation, the electrolyte temperature needs to be recorded.
If the specific gravity shows that the battery has at least 80% charge in all cells, it can move on to the load test.
However, if the charge falls below this threshold, extra charging & stabilization are required to assure accuracy throughout future testing.
Check the electrolyte levels in each cell:
- If water may be added, fill the electrolyte with purified water.
- After adding water, recharge the battery & allow it to stabilize before continuing testing.
If water may not be included, proceed to the following step.
Step-3: Specific Gravity Measurement
Use a hydrometer to determine each cell’s specific gravity (S.G.). Comparing the values to the standard chart for 77°F (25°C).
After the battery has been recharged, the specific gravity of electrolyte in each cell is measured with a hydrometer.
This measurement is essential since it provides immediate information on the charge and homogeneity of the cells.
For reliable operation, the difference in specific gravity across the highest & lowest cells should not be greater than 0.050.
If the readings are within this range, the battery may be termed balanced. However, if the discrepancy exceeds this limit, the battery should be recharged & retested to make sure that the imbalance is not caused by inadequate charging.
A comparison to the standard chart at 77°F yields the exact proportion of charge.
| S.G. Reading | % Charge | Measured Voltage |
| 1.277 | 100% | 12.73 V |
| 1.238 | 80% | 12.50 V |
| 1.195 | 60% | 12.24 V |
| 1.148 | 40% | 11.96 V |
| 1.098 | 20% | 11.66 V |
Ex: A specific gravity value of 1.277 shows that the battery is completely charged at 100 percent, with a voltage of 12.73 volts, whereas a result of 1.148 indicates that the battery is only 40 percent charged, with 11.96 volts.
Note:
- If all cells differ by less than 0.050 S.G., the battery is said to be balanced.
- If the S.G. of all cells exceeds 80% charge, proceed to load test.
Otherwise, re-charge the battery and test.

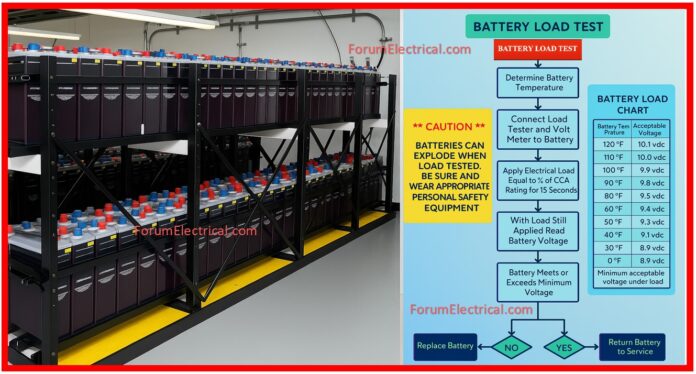

Step-4: Battery Load Test
The load test is possibly the most important stage in determining the true state of a battery.
This test applies an electrical load equivalent to half of the battery’s cold cranking ampere (CCA) rating for 15 seconds.
At this time, the voltage response of battery is closely monitored as the load is applied.
The permitted minimum voltage under load is directly proportional to the battery temperature.
Ex: At 80°F, the battery must retain at least 9.7 volts, however at 0°F, the allowable minimum voltage drops to 8.9 volt.
| Battery Temperature | Acceptable Voltage |
| 80°F | 9.7 V |
| 60°F | 9.5 V |
| 40°F | 9.3 V |
| 20°F | 9.1 V |
| 0°F | 8.9 V |
Any value less than the temperature-adjusted threshold indicates a weak or failing battery, which should be replaced.
If the battery maintains or surpasses the required voltage, it passes the load test & may be safely returned to operation.
The load test assesses the battery’s capacity to deliver current under operational conditions:
- Connect the load tester & voltmeter to the battery.
- Apply a load of ½ of the Cold Cranking Amps (CCA) rating for 15 seconds.
- Measure the voltage as the load is applied.
- Compare your data to the minimal permissible voltage chart based on the battery temperature.
Step-5: Assessment
Pass: When the battery maintains (or) exceeds the minimum allowable voltage under load, it can be safely put back into operation.
Fail: If the battery goes below the allowed voltage level, it needs to be replaced.
Conclusion
Using this systematic testing process, battery health and serviceability may be accurately assessed.
Starting with a visual inspection & electrolyte level check, specific gravity measurement and a controlled load test, the procedure returns only good batteries to service.
This planned technique helps identify bad batteries early, extends battery life and ensures dependable operation in important applications that require uninterrupted power.
