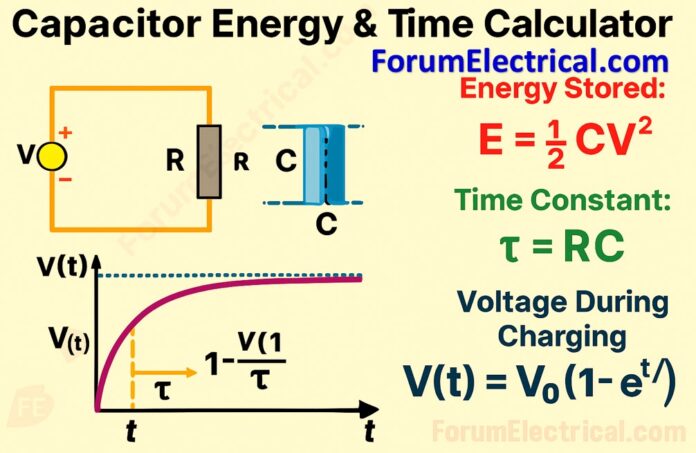

Capacitor Energy & Time Calculator

Calculator

Click here for more Electrical Calculators

A capacitor is a basic passive electronic component which retains electrical energy within an electric field.

When it is connected to a power source via a resistor the capacitor progressively charges storing energy that may be released as needed per requirement.

This calculator helps you find out how much energy a capacitor that can store and the way rapidly it charges (or) discharges.

Understanding the capacitor charging patterns is very essential in a wide range of applications including

> Power supply filtering & timing circuits,

> Energy storage systems and

> Flash photography.

The time constant (τ) controls how quickly the capacitor reacts to voltage changes which is essential when building a circuits with accurate timing requirements.

Energy Storage in Capacitors

When a voltage is supplied across a capacitor electric charge that builds on the plates resulting in an electric field between them.

The energy stored in this electric field is directly proportional to both the capacitance value & the square of the voltage applied.

This equation is essential since the doubling voltage quadruples stored energy.

Capacitors are frequently employed in electronic circuits for several applications which including:

> Storing energy for later utilization in applications such as camera flashes and power backup systems.

> Filtering involves smoothing down voltage variations in power supplies.

> Generating time delays in circuits via controlled charging and discharging.

> Coupling involves passing AC signals yet blocking DC components.

> Decoupling protects sensitive circuitry from voltage spikes & noise.

RC Time Constant

The RC time constant indicates that how rapidly a capacitor charges (or) discharges via a resistor.

It denotes the time required for a capacitor to charge to about 63.2% of the source voltage (or) discharge to 36.8% of its original value.

The charging process is not linear but rather follows an exponential curve. After several time constants:

1 τ = 63.2% charged.

2τ = 86.5% charged.

3 τ = 95.0% charged.

4τ = 98.2% charged.

5τ = 99.3% (called “fully charged”)

Formula

Energy Stored in Capacitor

For storing energy in a capacitor is:

E = ½CV²

Where

E – Energy Stored (joules)

C – Capacitance (Farads)

V – Voltage across Capacitor (volts)

This formula demonstrates that energy is directly proportional to capacitance but increases with the square of the voltage.

The factor of ½ represents the integration of charging current over time.

Time Constant

(τ) = RC

τ (tau) = Time constant (in seconds)

R – Resistance (ohms)

C – Capacitance (Farads)

The time constant is the product of resistance & capacitance.

A higher resistance or capacitance means a longer charging and draining time.

This parameter is critical in building timing circuits, filters & calculating circuit reaction times.

Voltage during Charging

V (t) = V₀ (1 – e^ (-t/τ))

Where

V (t) – Voltage at time t

V₀ – Supply Voltage

t – Time Elapsed

τ – Time Constant

e – Euler’s Number (about 2.71828)

Solved Example

A capacitor with 100 μF is linked to a 12V power supply via a 1000 Ω series resistor.

Calculate:

The energy held in the capacitor when it is fully charged.

The circuit’s time constant and the charge reached at 63.2%.

The time to reach around full charge (99%)

Solution:

Given:

Capacitance (C): 100 μF = 100 x 10⁻⁶ F = 1 x 10⁻⁴ F

Voltage (V) = 12 V

Resistance (R) = 1000 Ω = 1 kΩ

Step 1: Calculate Energy Stored

Formula: E = ½CV²

E = ½ × (1 x 10⁻⁴) x (12)²

E = ½ × (1 x 10⁻⁴) x 144

E = 0.5 x 0.0144

E = 0.0072 J = 7.2 mJ

Step 2: Calculate Time Constant

Formula: τ=RC

τ = 1000 × (1 x 10⁻⁴)

τ = 0.1 second = 100 milliseconds

Step 3: Time to Get to 63.2% Charge

The time required to reach 63.2% charge is equivalent to one time constant.

T₆₃.₂% = τ = 0.1 seconds = 100 milliseconds.

Step 4: Time for Full Charge (99%)

After around 5 time constants, the battery reaches full charge.

t₉₉% = 5τ = 5 x 0.1

t₉₉% = 0.5 seconds = 500 milliseconds

Results:

Energy stored: 7.2 mJ.

Time constant: 100 milliseconds.

Time to 63.2% charge: 100 milliseconds

Time to 99% charge: 500 ms.

Frequently asked questions (FAQs)

1). What is a capacitor and how do they work?

A capacitor is an electronic component that stores electrical energy in an electric field formed by 2 conducting plates separated by an insulating substance (dielectric).

When voltage is supplied, positive charges collect on one plate and negative charges on the other, resulting in an electric field that stores energy.

2). Why is the energy formula E = ½CV² not CV²?

The factor of ½ indicates that the voltage across a capacitor increases linearly as it charges.

During charging, the average voltage is V/2. Energy is equal to charge times voltage, so E = ½CV².

This results from combining the instantaneous power across the charging duration.

3) What does τ (the time constant) represent?

The time constant refers to how quickly a capacitor charges (or) discharges.

It refers to the time it takes for the capacitor to charge to 63.2% of the supply voltage (or) discharge to 36.8% of its original value.

A greater time constant indicates slower charging and draining.

4). How long does it take a capacitor to completely charge?

In theory, a capacitor takes an endless amount of time to charge.

In actuality, after 5 time constants (5τ), the capacitor achieves 99.3% of the supply voltage, which is regarded as “fully charged” for most applications.

After 3τ, the percentage reaches 95% so this is sufficient for a variety of applications.

5). What happens if you increase the resistance in an RC circuit?

Increasing the resistance raises the time constant (τ = RC) causing the capacitor to charge & discharge more slowly.

This is important in timing applications when you want to control how fast a circuit responds.

However, it has no effect on the final energy stored in the capacitor.
