Measuring and monitoring instruments are essential tools for electrical maintenance, troubleshooting, commissioning and energy auditing as well as for environmental monitoring & safety inspection.
They contribute to system reliability, fault detection prior to failure, compliance with the international safety standards and increased electrical installation efficiency.

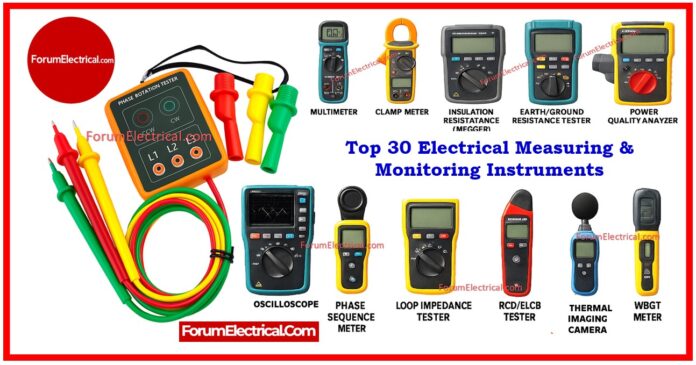

Top 30 electrical measuring instruments are:
1). Multi-meter
2). Clamp Meter
3). Insulation Resistance Tester (Megger)
4). Earth/Ground Resistance Tester
5). Power Quality Analyzer
6). Oscilloscope
7). Phase Sequence Meter
8). Loop Impedance Tester
9). RCD and ELCB Tester
10). Thermal Imaging Camera
11). Infrared Thermometer
12). Vibration Meter
13). Luxmeter
14). Sound Level Meter
15). WBGT Meter
16). Geiger Counter
17). EMF/RF Meter
18). Anemometer
19). Smoke Tube
20). Tachometer
21). LCR Meter

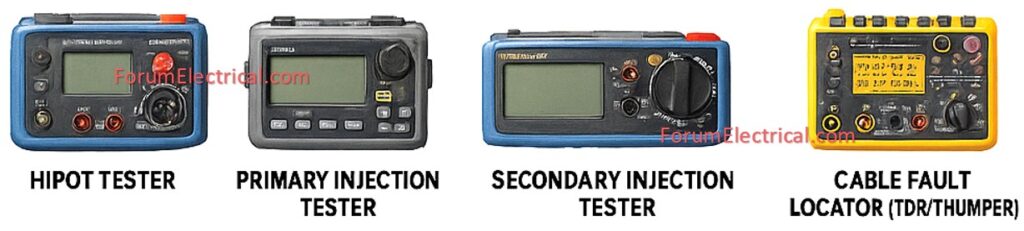

22). Hipot Tester
23). Primary Injection Tester
24). Secondary Injection Tester
25). Leakage Current Clamp Meter
26). Earth Resistance Clamp Meter
27). Data Logger (temp, humidity, voltage, etc.)
28). Harmonic Analyzer
29). Relay Test Set (Advanced Microprocessor-Based)
30). Cable Fault Locator (TDR, Thumper)
1). Multi-meter
Function
Multimeter determines voltage, current, resistance, continuity and diode performance.
Application
This tool is utilized by all electricians to diagnose electrical circuits.
Multimeter checks the supply voltage, detects open circuits, confirms polarity, tests electronic components & provides safe isolation before starting work.
Multimeter is essential for troubleshooting motors, panels, control circuits & home wiring.
2). Clamp Meter
Function
Clamp Meter measures current without touching the exposed conductors.
Application
Clamp meters can measure AC/DC current in active systems, detect overload, identify phase imbalance, verify motor current & evaluate distribution panel loads without interrupting wires.
Clamp meters is perfect for industrial maintenance.
3). Insulation Resistance Tester (Megger)
Function
Megger checks the insulation quality of cables, motors, transformers & switchgear.
Application
Insulation Resistance Tester (Megger)used in high DC voltage to detect moisture, aged insulation, contamination, cracking & insulation failure.
Useful for installation, maintenance & fault analysis.
4). Earth/Ground Resistance Tester
Function
Earth/Ground Resistance Tester assesses the efficacy of the grounding system.
Application
Earth/Ground Resistance Tester safely dissipates fault currents to reduce electric shock, fire dangers and equipment malfunctions.
Earth/Ground Resistance Tester utilized in substations, industrial plants, telecommunications towers & lightning protection systems.
5). Power Quality Analyzer
Function
Power Quality Analyzer determines power disturbances & harmonic pollution.
Application
Power Quality Analyzer used to Logs transients, sag/swell events, THD, power factor, flickers & voltage imbalance.
Power Quality Analyzer helps to troubleshoot nuisance tripping, overheating cables, capacitor failures & VFD faults.
6). Oscilloscope
Function
Oscilloscope shows the voltage signals over time.
Application
Oscilloscope used for the advanced troubleshooting of PLC circuits, electronic boards, power electronics & VFD outputs.
Oscilloscope helps to detect the waveform distortions, switching noise, timing difficulties & unexpected transient spikes.
7). Phase Sequence Meter
Function
Phase Sequence Meter checks the phase rotation order.
Application
Phase Sequence Meter prevents mechanical harm by rotating motors in the correct direction.
Phase Sequence Meter used before to commissioning motors, elevators, compressors & pumps.
8). Loop Impedance Tester
Function
Loop Impedance Tester determines fault path impedance.
Application
Loop Impedance Tester ensures that MCB/MCCB protective devices trip immediately during failures.
Loop Impedance Tester required for installation conformity with IEC & BS standards.
9). RCD and ELCB Tester
Function
RCD and ELCB Tester evaluates earth leakage protection equipment.
Application
RCD and ELCB Tester checks tripping time & current sensitivity.
RCD and ELCB Tester prevents electric shock fatalities and fire dangers.
RCD and ELCB Tester are use in safety audits that are required on a periodic basis.
10). Thermal Imaging Camera
Function
Thermal Imaging Camera identifies heat trends and hotspots.
Application
Thermal Imaging Camera are used in the predictive maintenance to detect loose connections, overloads and cable heating and also transformer hotspots.
Thermal Imaging Camera prevents equipment failure & fire risk.
11). Infrared Thermometer
Function
Infrared Thermometer measures surface temperature without making touch.
Application
Infrared Thermometer useful for rapid inspections of electrical panels, busbars, bearings & mechanical components.
Routine checks may be completed safely and quickly.
12). Vibration Meter
Function
Vibration Meter measures machine vibration levels.
Application
Vibration Meter applied to motors, pumps, blowers, and generators to detect misalignment, bearing wear, mechanical looseness & imbalance.
Essential for preventive maintenance.
13). Luxmeter
Function
Luxmeter measures the intensity of light.
Application
Luxmeter provides appropriate illumination for workshops, substations, control rooms, & warehouses. Helps to fulfill occupational lighting guidelines.
14). Sound Level Meter
Function
Sound Level Meter measures noise levels in decibels.
Application
Sound Level Meter used to ensure OSHA/ISO noise standards are met in DG rooms, compressor areas, manufacturers, and building sites.
15). WBGT Meter
Function
WBGT Meter determines heat stress.
Application
WBGT Meter uses temperature, humidity & radiation data to estimate appropriate work-rest cycles in hot situations such as foundries, building sites, and boiler rooms.
16). Geiger Counter
Function
Geiger counter detects ionizing radiation.
Application
Geiger counter used in radiology labs, nuclear stations & hazardous regions to maintain safe radiation exposure levels.
17). EMF/RF Meter
Function
EMF/RF Meter is used for measuring electromagnetic & radio frequency fields.
Application
EMF/RF Meter is used near telecom towers, high-voltage lines, electrical equipment & radar systems to meet EMF limitations.
18). Anemometer
Function
Anemometer determines the airflow speed.
Application
Anemometer are primarily utilized in HVAC testing, fume extraction systems, cleanrooms & industrial ventilation to verify the appropriate air flow.
19). Smoke Tube
Function
Smoke Tube uses the smoke to visualize the air movement.
Application
Smoke Tube tests the airflow paths and detects duct leaks and also used to evaluates ventilation effectiveness.
20). Tachometer
Function
Tachometer is used to measure motor rotational speeds.
Application
Tachometer application include fan calibration, motor slip computation, pump troubleshooting & mechanical alignment verification.
21). LCR Meter
Function
LCR Meter determines inductance, capacitance & resistance.
Application
LCR Meter used for electronic component testing, PCB repair, relay coil inspection, capacitor banks & quality control activities.
22). Hipot Tester
Function
Hipot (High Voltage) Tester is used to test the strength of insulation.
Application
Hipot (High Voltage) Tester ensures insulation integrity in switchgear, motors, cables & transformers through type and routine tests.
23). Primary Injection Tester
Function
Primary Injection Tester uses high current to test CTs, breakers & relays.
Application
Primary Injection Tester used during substation and panel commissioning to ensure correct relay settings, breaker operation timings & protection coordination.
24). Secondary Injection Tester
Function
Secondary Injection Tester tests relays with simulated signals.
Application
Secondary Injection Tester verify digital relays (IEDs), electromechanical relays & alarm logic without using high current.
25). Leakage Current Clamp Meter
Function
Leakage Current Clamp Meter measures extremely low leakage currents in circuits.
Application
Leakage Current Clamp Meter identifies insulation deterioration, tripping, ground faults & dangerous leakage levels in hospitals, data centers & industrial circuits.
26). Earth Resistance Clamp Meter
Function
Earth Resistance Clamp Meter measures earth resistance without the use of supplementary rods.
Application
Suitable for monitoring ground resistance in multi-earth systems, lightning protection grids & industrial earthing networks without making system shutdown.
27). Data Logger (Temp, Humidity, Voltage, etc.)
Function
Data Logger tracks the environmental (or) electrical characteristics throughout time.
Application
Data Logger used in substations, transformer rooms, server rooms, pharmaceutical businesses and research facilities to track trends, analyze failures and maintain stable environmental conditions.
28). Harmonic Analyzer
Function
Harmonic Analyzer assesses harmonic distortion in the electrical networks.
Application
Harmonic analyzer detects harmonic pollution caused by VFDs, UPS systems & SMPS loads. Helps to prevent cable overheating, capacitor bank failures and sensitive device malfunctions.
29). Relay Test Set (Advanced Microprocessor-Based)
Function
Relay Test Set used to tests current numerical relays using automated sequences.
Application
Relay Test Set simulates fault conditions, CT/PT ratios, trip curves & communication protocols (e.g. IEC 61850, Modbus).
Required for substation & protection engineering teams.
30). Cable Fault Locator (TDR, Thumper)
Function
Cable Fault Locator detects problems in underground wires.
Application
Time Domain Reflectometry (TDR) or high-voltage surge (thumper) is used to identify insulation failures, open circuits, short-circuits and moisture intrusion.
Utility companies, industries & maintenance teams all use it to quickly restore cable faults.
