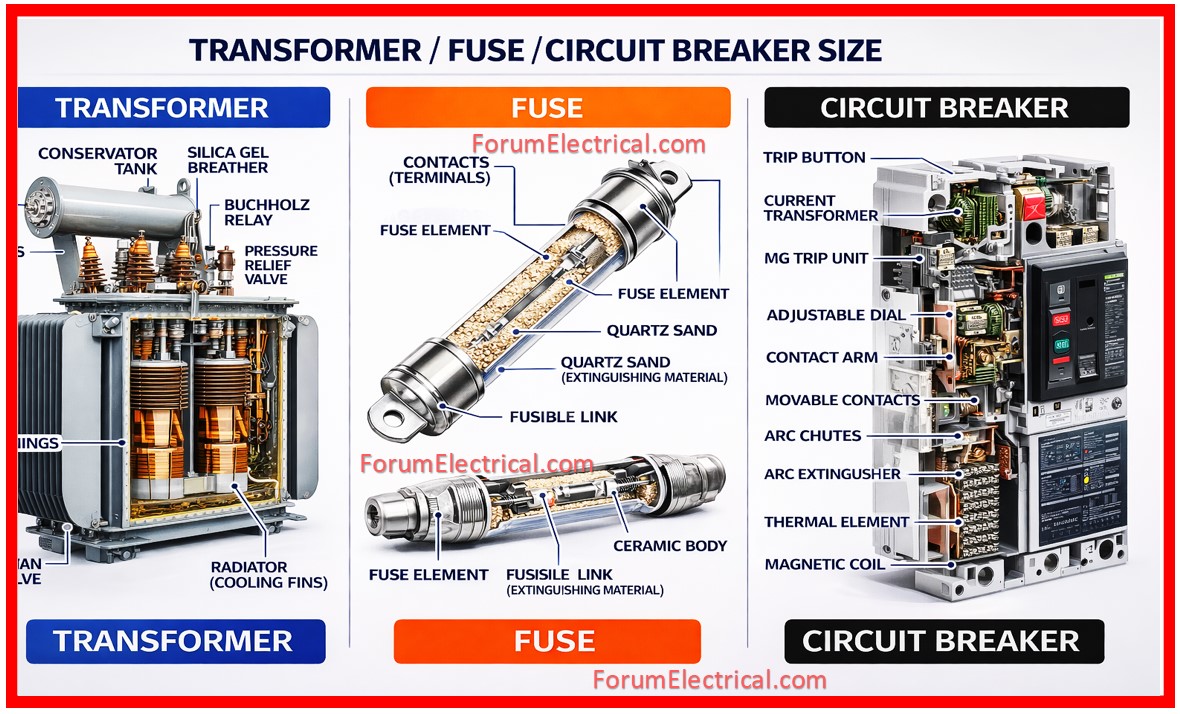

This online calculator tool is specially designed for electrical engineers, designers and contractors who require to quickly size protection for distribution transformers on the commercial and industrial projects.

Click here for more Electrical Calculators

This calculator determines the correct

1). Transformer size,

2). Protective device ratings (circuit breakers & fuses),

3). Operating currents and

4). Internal losses

for three phase power transformers in accordance with NEC Article 450.3 and device ratings per NEC 240.6(A).

All calculations follow the NEC framework and also provide standard device ratings that can be specified on the design drawings (or) submittals.

Calculation Basis

NEC 450.3: Protection of Transformers

NEC Article 450.3 governs the overcurrent protection for transformers rated above 1000 V & 1000 V (or) less.

The following multipliers apply to the transformers full load current (FLC) when sizing the overcurrent protective device:

Protection Location	kVA Rating	Circuit Breaker Max %	Fuse Max %
Primary Only	Any	125%	125%
Primary & Secondary	> 1000 kVA	250%	300%
Primary & Secondary	≤ 1000 kVA	250%	300%
Secondary Only	Any	125%	125%

NEC 240.6(A): Standard Ampere Ratings

Standard ampere ratings recognized under NEC 240.6(A) and that is used by this calculator include:

15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 110, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500, 600, 700, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000 A

Important Terms

Term	Definition
kVA	Kilovolt-ampere — apparent power; product of voltage and current
P.F (Power Factor)	Ratio of real power (kW) to apparent power (kVA); dimensionless (0–1)
Demand Factor (D.F)	Ratio of maximum demand to installed connected load; typically less than 1
Line Current (IL)	Current flowing in the supply lines connecting to the transformer terminals
Phase Current (IP)	Current through each individual winding coil
Delta (Δ) Connection	Winding configuration where coils are connected in a closed triangle; VL-L = VP, IL = √3 × IP
Wye (Y) Connection	Winding configuration with a common neutral point; VP = VL-L / √3, IL = IP
Impedance (%Z)	Ratio of the leakage impedance voltage drop to the rated voltage, expressed as a percentage
Core (Iron) Loss	No-load losses in the magnetic core due to hysteresis and eddy currents; constant with load
Copper Loss	Resistive (I²R) losses in the transformer windings; varies with load current squared
NEC	National Electrical Code — NFPA 70; the primary electrical installation standard in the USA
AHJ	Authority Having Jurisdiction — the body responsible for enforcing codes in a given location

Calculator Inputs

Connected Equipment Table

The calculator allows users to build a load schedule directly in the calculator.

Each row represents a name of equipment connected to the transformer secondary.

The columns are:

1). Equipment Name: Descriptive label for the load components.

2). kW: Active power consumption of the equipment.

3). P.F: Power factor (0.01 to 1.00) which is utilized to convert kW to kVA.

4). Qty: Number of identical units installed.

5). Equip. D.F: Equipment level demand factor (0.01 to 1.00).

6). Total kVA: Auto calculated as (kW x Qty) / P.F.

7). D.F (kVA): Demand adjusted kVA = Total kVA x Equip. D.F.

Example load schedule with 3 rows:

S.No	Equipment Name	kW	P.F	Qty	Equip. D.F	Total kVA
1	Sample Equipment	12	1.00	1	1.00	12.00
2	HVAC Unit	7.5	0.85	2	0.80	14.12
3	Lighting Panel	4.0	0.90	1	0.70	3.11

The footer row displays the sum of all Total kVA and Demand Factor kVA values that is together with the overall demand factor percentage.

Transformer & Protection Parameters

Input Field	Default Value	Description
Primary Voltage L-L (V)	440 V	Line-to-line voltage on the primary side of the transformer
Secondary Voltage L-L (V)	220 V	Line-to-line voltage on the secondary (load) side
Transformer Impedance (%)	5%	Per-unit impedance expressed as a percentage; affects fault current
Transformer Connection	Δ – Δ	Winding configuration: Delta–Delta, Delta–Wye, Wye–Delta, Wye–Wye
Transformer kVA Size	15 kVA	Nameplate kVA rating of the transformer
Efficiency @ Full Load (%)	98.4%	Efficiency at rated load; used to compute copper and core losses
Efficiency @ 1/4 Load (%)	97.5%	Efficiency at 25% of rated load; helps isolate core (iron) losses
Location of Transformer	Indoor	Affects applicable NEC code sections and installation requirements
Protection Location	Both Sides	Selects where overcurrent protection is installed (primary, secondary, or both)
Protection Type	CB & Fuse	Choose circuit breaker only, fuse only, or results for both

Formulas

1). Voltage and Current

The calculator resolves both

• Line-to-line voltages and
• Line-to-phase voltages and
• Currents for the primary and secondary windings

based on the selected winding configuration (Delta or Wye):

Quantity	Formula	Notes
Primary Line Current (IL)	IL = kVA x 1000 / (√3 x VL-L)	Three-phase full-load current on primary side
Secondary Line Current (IL)	IL = kVA x 1000 / (√3 x VL-L)	Three-phase full-load current on secondary side
Phase Current: Delta winding	IP = IL / √3	Current through each winding of a delta coil
Phase Current: Wye winding	IP = IL	Line and phase currents are equal in a wye connection
Phase Voltage: Delta winding	VP = VL-L	Phase voltage equals line voltage across delta coil
Phase Voltage: Wye winding	VP = VL-L / √3	Phase-to-neutral voltage in wye connection
Total Loss @ Full Load	Ploss = kVA x 1000 × (1/η – 1)	η is full-load efficiency as a decimal
Total Loss @ 1/4 Load	Ploss = kVA x 250 x (1/η_QL – 1)	η_QL is quarter-load efficiency
Core (Iron) Loss	Approx. from 1/4-load loss breakdown	Constant loss; independent of load current
Copper (I²R) Loss	Pcu = PlossFL-Pcore	Variable loss; scales with load current squared

2). Protection Device Sizing

Based on the selected protection location (primary only, secondary only or both) and protection type (circuit breaker, fuse, or both), the calculator applies the NEC 450.3 percentage multipliers to the respective full-load line current, then rounds up to the next standard NEC 240.6(A) rating.

Primary Side Protection

• Circuit Breaker (Primary & Secondary protection): I_CB = I_primaryline x 250%
• Fuse (Primary & Secondary protection): I_Fuse = I_primaryline x 300%
• Circuit Breaker or Fuse (Primary Only protection): I_device = I_primaryline x 125%

Secondary Side Protection

• Circuit Breaker: I_CB = I_{secondaryline} x 125%
• Fuse: I_Fuse = I_{secondaryline} x 125%

3). Transformer Losses

2 efficiency values at different load points allow the calculator to separate the total losses into their constituent parts:

Total Losses

1. Total Loss @ Full Load = kVA x 1000 x (1 / η_FL − 1)  [watts]
2. Total Loss @ 1/4 Load = kVA x 250 x (1 / η_QL − 1)  [watts]

Step-by-Step Calculation

Step 1: Build the Load Schedule

• Click + add equipment row to insert a new load equipment.
• Enter the equipment name, active power (kW), power factor, quantity & demand factor.
• Total kVA & D.F kVA columns update automatically.
• Review the total load row at the bottom of the table.

Step 2: Enter Transformer Details

• Input the primary & secondary line-to-line voltages.
• Select the winding connection type (Delta / Wye for each side).
• Enter the transformers nameplate kVA size.
• Enter the impedance percentage from nameplate data.
• Input full load and quarter load efficiency values (from manufacturer data / typical values).
• Select indoor (or) outdoor location.

Step 3: Select Protection Parameters

• Choose where the protection will be installed: primary side, secondary side (or) both.
• Choose the type of protection device: circuit breaker only, fuse only (or) both.

Step 4: Calculate & Review Results

• Click the calculate now button.
• Review the transformer summary cards for the quick cross check.
• Check voltage & current table to confirm line & phase values.
• Review Protection device sizing table for NEC compliant device ratings.
• Examine the transformer losses cards to assess efficiency impact.

Calculated Results

Output Terms	Description
Transformer Rating	Nameplate kVA as entered and confirms configuration
Primary / Secondary Voltage L-L	Line-to-line voltages on each winding side
Impedance	Per-unit impedance utilized in short circuit calculations
Efficiency @ Full / 1/4 Load	Confirmed efficiency values entered by the user.
Line / Phase Voltage	VL-L and VL-P for both windings, accounting for winding type (Δ or Y)
Line / Phase Current	Full-load line and phase currents; Δ: IP = IL/√3, Y: IP = IL
CB / Fuse Sizes	Calculated maximum amps and next standard NEC 240.6(A) rating
Losses Cards	Total losses at full load, quarter load, copper loss and core (iron) loss in watts

Important Notes & Limitations

• This calculator provides results for design guidance only. All sizing must be verified with the Authority having Jurisdiction (AHJ) before procurement (or) installation.
• The NEC percentages applied (125%, 250%, 300%) represent maximum ratings. The AHJ may require lower values in specific installations.
• For transformers with system voltages above 1000 V refer to NEC 450.3(A). For 1000 V <, refer to NEC 450.3(B) this calculator addresses the latter.
• Demand factor selections should be based on the actual operating profile of connected equipment, not assumed values.
• Efficiency values should be obtained from the transformer manufacturers nameplate or test report for accurate loss calculations.
• The impedance percentage affects fault current magnitude but is informational in this calculator that the fault current calculations require additional short-circuit analysis per IEEE C37 (or) similar.
• Always cross check equipment nameplate data and local utility requirements before finalising the design.
