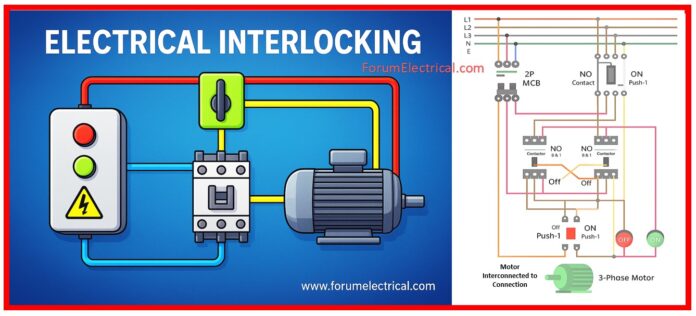

What is Electrical Interlocking?

What is Electrical Interlocking?

Electrical interlocking is a safety & control technique used in electrical systems to ensure that circuits, machinery, and equipment operate safely and orderly. It prohibits some actions unless certain conditions are met.

Ex: In a motor forward-reverse action controlled by 2 contactors, the interlocking system assures that only one contactor is active at a time.

This avoids both forward & reverse contactors from engaging at the same time which could result in a short circuit, equipment damage, or an accident.

Electrical interlocking operates by using:

• Contactors
• Relays
• Sensors
• Logical control links (NO/NC contacts)

The primary purpose is to:

• Enhance safety
• Prevent equipment damage.
• Enforce predetermined sequences.
• Make sure a coordinated operation.

What is an Electrical Interlocking Circuit?

An electrical interlocking circuit is a protective control mechanism utilized in electrical panels & automation to make sure that 2 (or) more electrical devices do not function concurrently in the conflicting manner.

It prevents harmful operations by blocking one circuit while another is already activated, assuring the safe and reliable operation of electrical equipment.

Purpose of Electrical interlocking

Electrical interlocking is primarily intended to protect equipment and ensure safety. It prevents

• Short circuits,
• Mechanical damage, and
• Accidents caused by the simultaneous energization of opposing circuits.

The circuit automatically prevents the undesirable operation by employing auxiliary contacts, relays (or) push buttons.

Working Principle of Electrical interlocking

Electrical interlocking works on the principle of mutual exclusion.

Ex: In a forward-reverse motor control system, when the forward contactor is get activated, it’s auxiliary contact opens the route of the reverse contactor that preventing both from being get activated simultaneously.

This avoids the motor from getting (or) receiving opposite phase connections at same time.

Where is Electrical Interlocking used for?

Electrical interlocking is commonly utilized in:

• Industrial automation systems
• Motor control circuits (forward-reverse, star-delta and two-speed motors).
• Power distribution networks and
• Machines operate sequentially.

Electrical interlocking ensures safe, reliable & orderly operation by connecting motors, machinery, or power sources to logical controllers.

How does an Electrical Interlocking Control Circuit Work?

First, let’s have a look at a basic interlocking control circuit:

Step-1: Starting Motor 1 (M1)

Activate (or) Enable the Contactor M1 by pressing the “ON” Push-1 button.

There is a flow of current through the overload relay, the fuse, the OFF Push-1, and the ON Push-1.

Motor 1 starts running.

Step-2: Holding Circuit

During the process of M1’s energization, its NO contact will shut with ON Push-1 in concurrently.

This maintains M1’s energy even after the ON Push-1 command has been released.

Step-3: Starting Motor 2 (M2)

M1’s NO link in the line 2 is closed which enables the M2 circuit to get energizes.

Push-2 is pressed to activate Contactor M2, which then becomes energized.

When holding, the M2’s NO connection is maintained, thereby keeping it on.

Step-4: Sequential Logic

M1 must be turned on before M2 may begin to operate.

Additionally, M3 will only operate when M2 is made to turned ON.

Step-5: Protection Devices

Fuses, circuit breakers & overload relays are all devices that provide protection against overload faults and short circuits.

How can the Interlocking Circuit be modified?

The circuit can be changed to meet process requirements.

To stop Motor 1 when Motor 3 is running, use the NC contact of the Contactor K3 in line 1.

When K3 is energized, the NC contact opens.

This de-energizes K1 and stops Motor 1.

Such changes enable engineers to tailor control logic for a variety of industrial applications.

What is Contactor Interlocking?

Contactor interlocking is a subset of electrical interlocking in which contactors are configured so that only one can operate at a time.

Ex: In a Star-Delta Starter, the motor may only operate in either Star (or) Delta mode. Interlocking assures that if the Star contactor is turned ON the Delta contactor cannot activate, and vice versa.

Another example of sequential motor operation:

> Motor 2 will not start till Motor 1 has previously get started.

> Motor 3 will not start till Motor 2 is operational.

This ensures safe sequential operation & protects the equipment from concurrent starts.

Applications of Electrical Interlocking

Interlocking for 1-Phase Motor with Dual Power Supplies (ATS System):

If a motor is connected to both the primary power source & a backup generator.

When 2 contactors are interlocked, only 1 supply source can be turned on at any given time.

Prevents backfeeding & equipment damage.

3-Phase Motor Interlocking for Forward and Reverse Operation:

Controlled by the Direct Online (DOL) starting.

2 contactors (forward and reverse) are linked.

Ensures that only one way can be run at a time.

It prevents short circuits and mechanical damage.

Other Applications:

Star-Delta Starter with Timer

2-Speed Motor Control (1 or 2 directions)

Sequential motor action.

Industrial machinery interlocks.

Why is Electrical Interlocking Important?

It prevents short circuits & phase-to-phase failures.

Ensures safe machine operation.

Implements process sequence (step-by-step machine or motor initialization)

Increases devices lifetime by avoiding simultaneous operations.

Improves the safety of operators & technicians.

What are the types of Interlocking System in Electrical?

Interlocking system are classified as:

1. Mechanical Interlocking,
2. Electromechanical Interlocking,
3. Relay Interlocking and
4. Electronic Interlocking.

What is Electronic Interlocking?

Electronic interlocking is a one of the railway safety system that utilizes computer technology to control the train movements & prevent accidents.

It is primarily a digital replacement for previous relay-based (or) mechanical interlocking systems, with faster operations, less space & power consumption & easier interaction with the other railway systems.

Conclusion

Electrical interlocking is the fundamental safety & control mechanism in the industrial & power applications.

It utilizes contactors, relays & logic linkages to ensure that motors, machines & power sources run safely.

From basic forward-reverse circuits to complicated sequential motor control, interlocking protects against damage, assures safety & keeps processes operating smoothly.
