Reactive Power Calculator (kVAR)

The Reactive Power Calculator is a specialized online calculator designed to analyze transformer

• Reactive power,
• Power factor correction and
• System efficiency.

This post provides comprehensive guidance on how to use the calculator, understand the input parameters, interpret results and apply the formulas in practical power system engineering.

To perform the calculation:

• Fill in all 6 input fields with transformer and load parameters
• Click the Calculate button
• Review results displayed in multiple units (kVAR / MVAR, kVA / MVA, kW / MW)
• Use the formula reference section to understand calculations

Click here for more Electrical Calculators

You can also follow us on Facebook and Linkedin to receive daily updates.

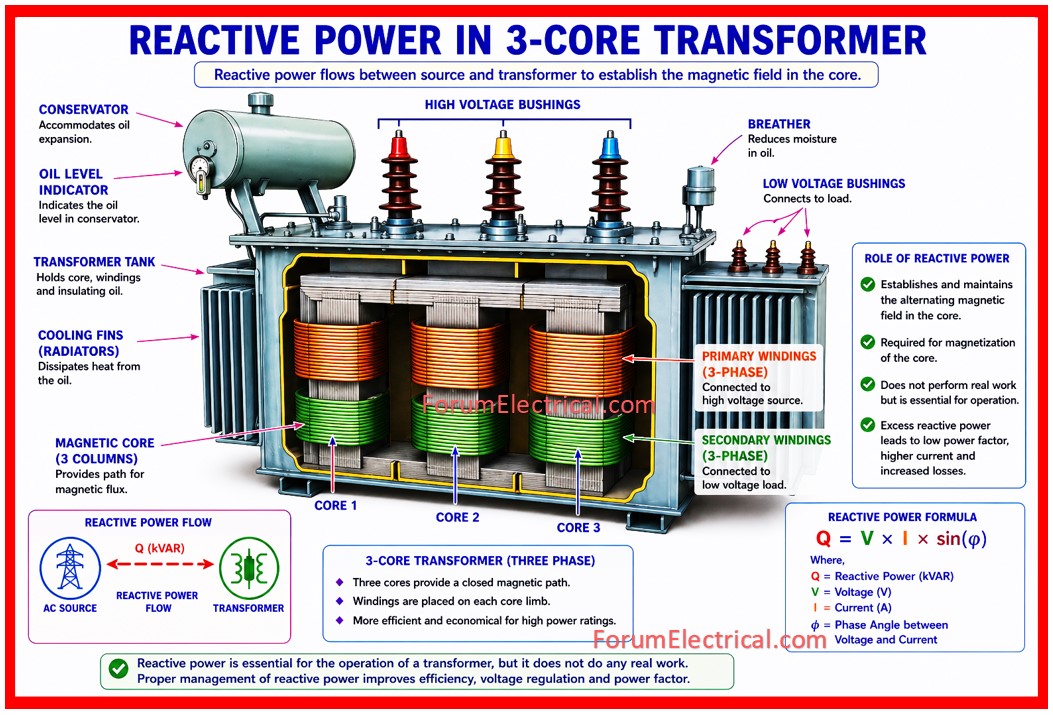

What is Reactive Power?

Reactive Power (Q) is measured in VAR or MVAR and this represents the component of apparent power that does not contribute to useful work. It is calculated from the phase angle between voltage and current.

What is Apparent Power?

Apparent Power (S) is the vector sum of active and reactive power that is calculated as P / PF. This is the total power drawn from the supply.

What is Power Factor?

Power Factor is the ratio of active to apparent power (cosine of the phase angle). Values range from 0 to 1; unity (1.0) means pure resistive load with no reactive component.

What is Phase Angle?

Phase Angle (θ) is the angle between the current and voltage waveforms. Higher angles indicate lower power factors and more reactive power. Calculated as θ = arccos(PF).

What is Transformer Losses?

Transformer losses is primarily copper losses due to resistance in transformer windings that is calculated as

P_loss = (S x Z%) / 100

These represent energy dissipated as heat.

Formulas & Calculations

The following formulas are used in the calculator.

Calculation	Formula
Current Reactive Power	Q₁ = P x tan(cos⁻¹(PF₁))
Target Reactive Power	Q₂ = P x tan(cos⁻¹(PF₂))
Capacitor Bank Required	Qc = Q₁ − Q₂
Apparent Power	S = P / PF₁
Phase Angle	θ = cos⁻¹(PF)
Transformer Losses	Ploss = (S x Z%) / 100

Input Parameters

Transformer Parameters

Parameter	Unit	Description & Range
Transformer Capacity	kVA	The rated apparent power of the transformer in kilovolt-amperes. Typical range: 10 to 1000+ kVA for distribution transformers.
Short Circuit Impedance	%	Represents the voltage drop when the transformer is short circuited at rated current. Typical range: 5–15%. Higher values indicate greater impedance.

Load Parameters

Parameter	Unit	Description & Range
Active Power	kW	Real power delivered to the load. Represents the power actually consumed (doing useful work).
Current Power Factor	0–1	Existing power factor of the load. Values < 1.0 indicate inductive loads. Typical range: 0.6 to 0.95.
Target Power Factor	0–1	The desired corrected power factor after capacitor installation. Typically 0.90 to 0.99 for industrial systems.
Supply Voltage	kV	Transformer primary voltage (input voltage). Typical values: 11 kV, 22 kV, 33 kV, etc.

Important Note: Target power factor must be higher than the current power factor.

Unit Conversion Factors

The calculator automatically converts between standard and mega units:

1 MVAR = 1000 kVAR

1 MVA = 1000 kVA

1 MW = 1000 kW

Output Results

The calculator generates 8 important results:

Result	Units	Description
Current Reactive Power	kVAR / MVAR	Existing reactive power drawn by the load based on current power factor
Target Reactive Power	kVAR / MVAR	Desired reactive power at the target power factor after correction
Required Capacitor Size	kVAR / MVAR	Capacitor bank rating needed to achieve target power factor
Apparent Power (S)	kVA / MVA	Total power drawn from the supply (vector sum of P and Q)
Phase Angle – Current	Degrees	Phase difference between voltage and current at current PF
Phase Angle – Target	Degrees	Phase difference at the target power factor after correction
Transformer Losses	kW / MW	Estimated copper losses (I²R losses) in transformer windings
Load Utilization	%	Percentage of transformer rated capacity being used

Practical Applications

Power Factor Correction

Power factor correction reduces the reactive power drawn from the power grid by installing capacitor banks.

This improves efficiency, reduces transmission losses and lowers utility bills by avoiding the reactive power charges.

Transformer Efficiency

Transformer losses increase with load.

The calculator estimates copper losses (I²R losses) as a percentage of transformer impedance which is helping engineers to assess the thermal stress and efficiency.

Load Utilization

The utilization percentage indicates how much of the transformers rated capacity is being utilized.

Values > 80% warrant consideration of the transformer upgrading (or) load balancing.

Typical Parameter Values

Parameter	Typical Range	Notes
Transformer Capacity	10 kVA to 1000+ kVA	Distribution & industrial transformers
Short Circuit Impedance	5–15%	Typically for  the distribution transformers
Current Power Factor	0.60–0.95	Industrial loads i.e., typically 0.75–0.85
Target Power Factor	0.90–0.99	0.95 is industry standard target
Supply Voltage	11 kV, 22 kV, 33 kV, 138 kV	Common distribution voltages

Error Handling & Validation

The calculator validates all inputs:

• All fields must be filled with numeric values.
• All parameters should be positive (greater than 0).
• Active power cannot > transformer capacity.
• Power factors should be between 0 and 1.
• Target power factor should be higher than current power factor.

Solved Example

Industrial facility with a 100 kVA transformer and inductive motor loads.

Input Parameter	Value	Unit
Transformer Capacity	100	kVA
Short Circuit Impedance	8	%
Active Power	60	kW
Current Power Factor	0.75	-
Target Power Factor	0.95	-
Supply Voltage	11	kV

Results

Current reactive power: 52.29 kVAR (0.0523 MVAR)

Target reactive power: 14.53 kVAR (0.0145 MVAR)

Required capacitor size: 37.76 kVAR (0.0378 MVAR)

Transformer losses: 7.20 kW (0.0072 MW)

Load utilization: 60.0%
