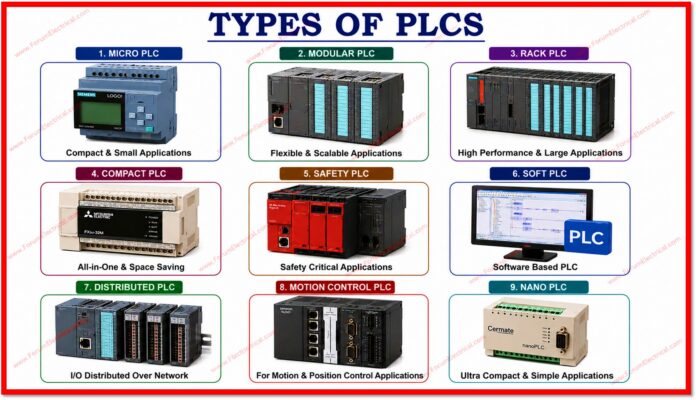

Types of PLC

What is PLC?

A Programmable Logic Controller (PLC) is an industrial digital computer designed to control the machinery and automated processes in manufacturing plants, assembly lines and other industrial environments.

Since their introduction in the late 1960s PLCs have replaced traditional relay based control panels because they are more reliable, easier to reprogram and capable of handling complex logic, timing and counting operations.

Because industrial automation requires vary enormously from a single conveyor belt to an entire automotive assembly plant, manufacturers developed PLCs in many different forms.

These devices are generally classified along three lines:

• Physical structure,
• Size (or) input/output (I/O) capacity and
• Way they communicate and integrate with other systems.

Understanding these categories helps engineers to select the right controller for a given application, balancing cost, flexibility and performance.

Classification by Physical Structure

Compact (Fixed or Integrated) PLC

A compact PLC also called a fixed or integrated PLC houses the

• Processor,
• Power supply,
• Memory and
• A fixed number of input and output terminals within a single, non-expandable unit.

Because everything is built into one enclosure compact PLCs are inexpensive, simple to install and require minimal wiring.

They are well suited to small, well-defined automation tasks such as controlling a packaging machine, a small conveyor system (or) a basic lighting control panel.

The primary disadvantages is limited flexibility: once the fixed number of I/O points is used up, the system cannot be expanded and the controller should be replaced entirely if requirements increases.

This small architecture is used in most nano and micro PLCs and other entry-level industrial controllers.

Modular PLC

A modular PLC separates the

• Processor,
• Power supply and
• I/O modules

into individual components that slot into a common rack (or) backplane.

Each module can be selected, added (or) removed independently allowing engineers to tailor the configuration of

• Digital inputs,
• Analog inputs,
• Relay outputs,
• Communication modules and
• Specialty modules such as those for temperature (or) motion control to the exact needs of the application.

Modular PLCs are more adaptable and flexible than compact units as they can start with a simple configuration and expand by adding modules.

The trade off is higher initial cost and a larger physical footprint which is why modular PLCs are commonly chosen for medium to large industrial systems where the future expansion is likely.

Rack-Mounted PLC

Rack-mounted PLCs are specialized modular designs with CPU and I/O modules set up on a rack chassis frequently used with other automation equipment in a control cabinet.

These systems support a very high module count & can be expanded across multiple racks connected through a backplane (or) expansion bus.

Rack-mounted architectures are typically found in large scale manufacturing facilities, power plants and process industries that require dense I/O counts, built-in redundancy and easy module replacement during maintenance without shutting down the entire system.

Classification by Size and Input/Output Capacity

Nano PLC

Nano PLCs are the smallest class of controllers generally supporting fewer than 32 I/O points.

They are used for very simple automation tasks such as

• Controlling a single machine function,
• Small pump station or
• Basic timer or
• Counter application.

Their low cost and small size make them useful in light commercial and small industrial applications.

Micro PLC

Micro PLCs typically manage or handle across 32 to 128 I/O points.

They provide more processing power and memory than nano units while remaining compact and affordable making them suitable for small machines, simple production lines and standalone equipment that requires basic sequencing, timing and counting logic.

Small (Mini) PLC

Small (or) mini PLCs support around 128 to 512 I/O points & add features like as

• Analog signal processing,
• Basic networking, and
• More advanced programming instructions.

They are commonly deployed in small to medium production cells, HVAC systems and water treatment skid units.

Medium PLC

Medium sized PLCs manage anywhere from several hundred to a few thousand I/O points & usually support multiple communication protocols, larger memory for complex programs and integration with supervisory control & data acquisition (SCADA) systems.

They are widely used in mid sized manufacturing plants and process automation systems that coordinate several machines (or) production stages.

Large PLC

Large PLCs are designed for extensive industrial operations supporting many thousands of I/O points across the multiple racks (or) remote I/O stations.

They provide redundant processors, high-speed networking and the processing power needed to run complex control algorithms in real time. Large PLCs form the backbone of facilities such as

• Oil refineries,
• Automotive assembly plants,
• Steel mills and
• Power generation stations

where dependability and the capacity to manage several thousand devices are important.

Classification by Application and Communication Architecture

Programmable Automation Controller (PAC)

A Programmable Automation Controller is a hybrid platform that combines the rugged reliability of a traditional PLC with the advanced computing capabilities of an industrial PC.

PACs often enable a wide range of programming languages, native floating point math, powerful motion control and seamless connection with enterprise databases & networks.

They are applicable in applications that demand both high speed discrete control and sophisticated data processing such as packaging lines with vision systems (or) batch processes that require detailed recipe management.

Soft PLC

A soft PLC (or) software based PLC runs the control logic as a software application on a standard industrial PC (or) server rather than on dedicated PLC hardware.

This method leverages the processing power & flexibility of commercial computing hardware allows easier integration with databases & enterprise software and can lower long term hardware costs.

However soft PLCs depend on the reliability of the host operating system and are generally considered less rugged than hardware based controllers in extreme environments.

Networked (or) Distributed PLC

In a networked (or) distributed control architecture multiple PLCs are connected through industrial communication protocols such as

• EtherNet/IP,
• Modbus,
• PROFINET,
• DeviceNet

allowing them to share data & coordinate operations across an entire facility.

Rather than depending on a single, centralized controller, distributed systems place smaller PLCs closer to the equipment they control that is improving response time, simplifying wiring and increasing overall system resilience as the failure of one node does not necessarily halt the entire process of the system.

Comparison Table

The table below summarizes the main PLC types, the basis on which each is classified, their typical capacity (or) distinguishing feature and the type of application each is best suitable for.

Type	Classification Basis	Typical I/O / Feature	Common Application
Compact (Fixed) PLC	Structure	Fixed I/O, single housing	Small machines and simple panels
Modular PLC	Structure	Expandable via plug-in modules	Medium to large flexible systems
Rack-Mounted PLC	Structure	High-density, multi-rack	Large plants and process industries
Nano PLC	Size / I/O Capacity	Fewer than 32 I/O points	Very simple and single function tasks
Micro PLC	Size / I/O Capacity	32 to 128 I/O points	Small machines and standalone equipment
Small (Mini) PLC	Size / I/O Capacity	128 to 512 I/O points	Small to medium production cells
Medium PLC	Size / I/O Capacity	Hundreds to a some thousand I/O	Mid-sized manufacturing plants
Large PLC	Size / I/O Capacity	Many thousands of I/O points	Refineries, assembly plants and power stations
Programmable Automation Controller (PAC)	Application	Hybrid PLC + industrial PC	High-speed control with data processing
Soft PLC	Application	Runs as software on a PC/server	Cost effective and software-integrated control
Networked / Distributed PLC	Application	Multiple linked (connected) controllers	Facility wide range of coordination

Conclusion

Automation projects vary in size, complexity and growth objectives therefore PLC selection is important.

For medium to large activities, modular & rack-mounted systems offer flexibility and I/O while mini, nano and micro units are cost-effective for simple, predetermined operations.

PLCs, soft PLCs and networked architectures address the increased demand for fast data processing, software integration & facility-wide coordination.

Understanding these domains helps engineers and plant managers choose a controller design that balances performance, scalability and cost for automation.
