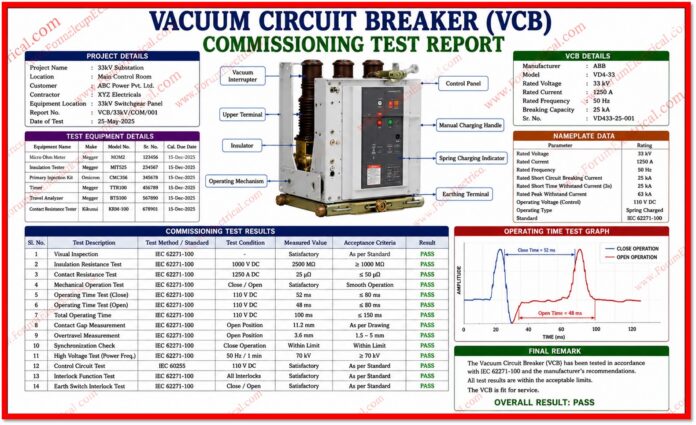

Vacuum Circuit Breaker (VCB) Commissioning Test Report
Vacuum Circuit Breaker (VCB) Commissioning Test Report

This document gives a comprehensive technical test report template and guidance for Vacuum Circuit Breakers (VCBs) used in medium voltage power systems.

It covers visual inspection, mechanical checks, insulation tests, contact resistance, timing tests, vacuum integrity, primary and secondary injection, and final acceptance criteria.

This report provides a complete commissioning and acceptance record for medium-voltage vacuum circuit breakers.

• 5 kV Insulation Resistance Tester,

• Micro-ohmmeter (100 A or higher),

• Circuit Breaker Analyzer,

• Primary Injection Test Set,

• Secondary Injection Relay Test Kit,

• Digital Multimeter,

• Torque Wrench and

• Thermal Camera (optional).

Record manufacturer, model, serial number, rated voltage, rated current, short-circuit breaking capacity, panel identification, installation location, commissioning date, ambient temperature, humidity, and applicable standards (IEC 62271-100 / IEEE C37).

Isolate the breaker, apply lockout/tagout, verify absence of voltage, discharge stored energy, wear appropriate PPE and ensure the breaker is in a safe condition before testing.

Inspect insulation, bushings, shutters, operating mechanism, wiring, auxiliary contacts, earthing, cleanliness, corrosion, loose hardware, and nameplate details.

Test EquipmentStandard/LimitMeasured ValueResultRemarks
1).

Perform manual and electrical OPEN/CLOSE operations. Verify smooth operation, charging mechanism, anti-pumping, trip-free function, operation counter, and spring charging motor.

Test EquipmentStandard/LimitMeasured ValueResultRemarks
1).

IR test is used to ensure insulation resistance phase-to-phase & phase-to-earth using a 5 kV insulation resistance tester.

Record temperature-corrected values and compare with manufacturer recommendations.

Test EquipmentStandard/LimitMeasured ValueResultRemarks
1).

Contact Resistance Test measure each pole using a calibrated microohmmeter (µΩ) with at least 100A DC test current.

Compare all poles for uniformity & verify all the compliance with the manufacturer limits.

Test EquipmentStandard/LimitMeasured ValueResultRemarks
1).

Measure opening time, closing time, contact bounce, pole discrepancy and synchronization using a circuit breaker analyzer.

Compare results with factory specifications.

Test EquipmentStandard/LimitMeasured ValueResultRemarks
1).

Do not perform any tests exceeding manufacturer limits.

Check trip coil, close coil, undervoltage release, auxiliary contacts, spring charging motor, interlocks, remote/local control, SCADA indications, alarms and annunciation.

Primary injection test used to inject current via the primary circuit to verify current path integrity, CT polarity, relay operation & trip functionality.

Inject test signals into protection relays to verify relay settings, timing, alarms and breaker trip operation.

All measured values shall be within manufacturer tolerances. No abnormal noise, excessive contact resistance, insulation deterioration, timing deviation (or) functional failure shall be observed.

Include columns for Test Item, Standard/Limit, Measured Value, Result (Pass/Fail), Remarks, Test Instrument, Calibration Due Date.

ParameterLimitMeasuredPass/FailRemarks
1).
2).
3).
4).
5).
6).
7).
8).
9).
10).
11).
12).
13).
14).
15).


Engineer Signature: ____________________

Client Signature: ____________________

Tested By
Reviewed By
Approved By
Date

State whether the breaker is acceptable for service, requires corrective maintenance, or should remain out of service until defects are rectified.
