Every rectifier circuit that converts alternating current (AC) to direct current (DC) produces an output that is not perfectly correct.

Instead of a flat DC level, the output contains a periodic fluctuation superimposed on the average DC value.

Click here for more Electrical Calculators

You can also follow us on Facebook and Linkedin to receive daily updates.

This fluctuation is known as ripple voltage and it is one of the most important parameters engineers should quantify when designing

• Linear power supplies,
• Battery chargers and
• DC filtering stages

for motor drives, control electronics and instrumentation.

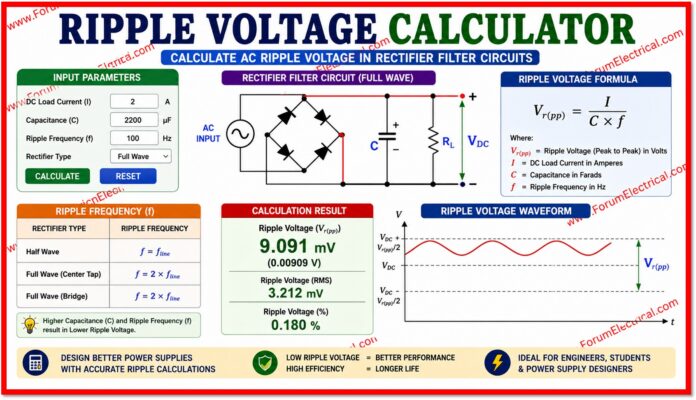

This post explains the physical origin of ripple voltage that derives the governing formula used in the accompanying Ripple Voltage Calculator and provides guidance on interpreting the results for half-wave & full-wave (bridge) rectifier topologies.

What is Ripple Voltage?

Ripple voltage is defined as the peak-to-peak variation of the output voltage of a DC power supply around its average (mean) value.

It is caused by incomplete filtering of the pulsating DC waveform produced by a rectifier.

During each conduction cycle, the filter capacitor charges to the peak of the rectified waveform & then discharges into the load until the next conduction pulse arrives.

This charge-discharge cycle generates a sawtooth-like fluctuation on top of the DC level.

The magnitude of ripple depends primarily on 4 factors:

• Load current drawn from the supply,

• Filter capacitance value,

• Ripple frequency (determined by rectifier type & supply frequency) and

• Type of rectifier circuit (half-wave, full-wave, or three-phase).

Why Ripple Voltage Occurs?

A rectifier alone only changes the polarity of the negative half-cycles of an AC waveform; it does not generate a constant voltage.

To smooth this pulsating output into usable DC, a reservoir (filter) capacitor is placed across the load.

The capacitor charges rapidly toward the peak of each rectified pulse and then discharges slowly via the load resistance during the interval when the rectifier diodes are reverse-biased and not conducting.

Because the capacitor cannot sustain the peak voltage indefinitely, the output voltage droops between charging pulses.

This droop, repeating at the ripple frequency, is the ripple voltage.

Its magnitude depends on 3 factors: how much current the load draws, how large the filter capacitor is and how frequently the capacitor gets recharged.

Formula

For a capacitor-input filter under the standard simplifying assumption that the capacitor discharges at an approximately constant rate (a valid approximation when ripple is small compared to the DC level), the peak-to-peak ripple voltage is given by:

V_ripple(pp) = I_L / (f_ripple × C)

where

I_L – Average DC load current in amperes,

C – Filter capacitance in farads and

f_ripple – Frequency at which the capacitor is recharged.

This is the formula implemented in the Ripple Voltage Calculator with f_ripple computed as the supply frequency multiplied by a rectifier dependent factor n (1 for half-wave, 2 for full-wave/bridge).

The calculator additionally reports an approximate RMS ripple voltage obtained by treating the ripple waveform as a sawtooth:

V_ripple(rms) ≈ V_ripple(pp) / (2√3)

This RMS approximation is standard in power supply design references and is accurate enough for first pass filter sizing.

Where V_DC is supplied, the calculator also reports the ripple factor defined as the ratio of RMS ripple to the average DC output expressed as a percentage:

Ripple Factor (%) = (V_ripple(rms) / V_DC) x 100

Effect of Rectifier Topology

The choice between half-wave and full-wave (including bridge) rectification has a direct and significant effect on ripple performance summarized as:

Because a full-wave (or) bridge rectifier recharges the filter capacitor twice per mains cycle instead of once, the capacitor has half as much time to discharge between pulses.

For the same load current & capacitance, this halves the peak-to-peak ripple voltage compared to a half-wave design which is one of the primary reasons full-wave and bridge topologies are preferred in virtually all linear power supplies above trivial power levels.

Practical Design Guidance

• Increasing filter capacitance reduces ripple proportionally which is doubling C halves V_ripple(pp) for a fixed load current.
• Ripple voltage scales linearly with load current; lightly loaded supplies will always show less ripple than heavily loaded ones for the same filter.
• At 50 Hz supply, a full-wave rectifier ripples at 100 Hz; at 60 Hz supply, at 120 Hz. This effective ripple frequency is what a bench oscilloscope will display on the DC rail.
• Ripple factor is a normalized figure of merit that allows fair comparison between supplies of different voltage levels and a design target of under 5% ripple factor is a common rule of thumb for general purpose linear supplies with far tighter limits (often under 1%) for audio, RF (or) precision instrumentation rails.
• The formula assumes the capacitor fully discharges in a roughly linear fashion between conduction pulses.

Worked Example

Consider a single-phase full-wave bridge rectifier operating from a 50 Hz supply, delivering 2 A to a load with a 4700 µF filter capacitor and a nominal DC output of 24 V.

Since the rectifier is full-wave, the ripple frequency is 2 x 50 Hz = 100 Hz. Applying the peak-to-peak ripple formula:

V_ripple(pp) = 2 / (100 x 0.0047) = 4.26 V

Converting to RMS ripple voltage:

V_ripple(rms) = 4.26 / (2√3) ≈ 1.23 V

The resulting ripple factor is 1.23 / 24 ≈ 5.1%

indicating that additional filtering (a larger capacitor or an active regulator stage) would be advisable if the load requires tighter voltage regulation.

Applications

Ripple voltage calculations are routinely applied in the design and verification of:

• DC power supplies for control panels and PLC systems.
• Battery charger output stages.
• DC bus filtering in variable frequency drives (VFDs) and motor controllers.
• Battery Energy Storage System (BESS) converter stages.
• Solar inverter DC-link capacitor sizing.

Excessive ripple voltage can cause audible hum in audio equipment, increased heating & reduced lifespan in electrolytic capacitors, malfunction of sensitive digital logic circuits and inaccurate readings in instrumentation.

For this reason, ripple voltage limits are frequently specified in equipment datasheets & are a standard verification point during factory acceptance testing (FAT) of power conversion equipment.

Summary

The ripple voltage calculator provides a fast and reliable method for estimating the residual AC component in rectified DC power supplies allowing engineers to size filter capacitors correctly, select appropriate rectifier topologies and verify compliance with load sensitivity requirements.

By understanding the relationship between load current, capacitance and ripple frequency, designers can achieve stable, low-ripple DC outputs suitable for demanding industrial, control and renewable energy applications.
