What are the Different Types of Earthing Systems?

Earthing is an essential electrical safety parameter.

A low-resistance path allowing fault current to flow safely into the ground protects humans, electrical equipment, and the power system against electric shock, insulation failure, leakage current and risky contact voltages.

Circuit breakers, fuses and protective relays work better during earth faults with a well-built earthing system.

Earthing connects exposed conductive electrical equipment to the ground as a whole.

Earthing depends on supply system, voltage level, installation type, fault protection requirements, soil qualities and electrical standards.

Houses, businesses, factories, substations, transmission systems and renewable energy projects use different earthing systems.

Understanding Electrical Earthing

An earthing system normally consists of an earth electrode, earthing conductor, protective conductor, bonding connections, and associated components. The earth electrode provides the connection between the electrical installation and the soil. Common electrode arrangements include rods, pipes, plates, grids, strips, and foundation earthing systems.

During normal operation, the protective earthing conductor generally carries little or no current.

When insulation fails and a live conductor contacts an exposed conductive portion, the earthing system serves as a fault-current path. This lets the protection device swiftly disconnect the defective circuit.

A good earthing system should have enough mechanical strength, corrosion resistance, current capacity and low impedance for the application.

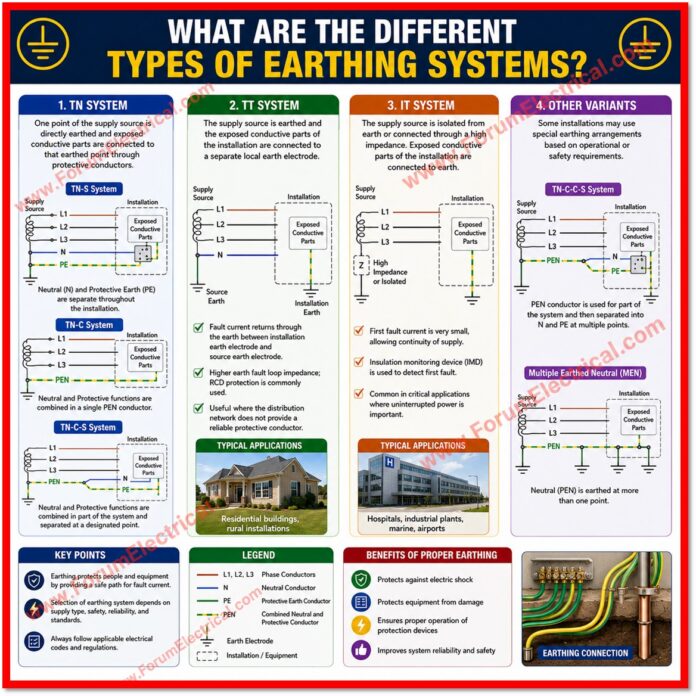

Types of Earthing Systems based on Supply Arrangement

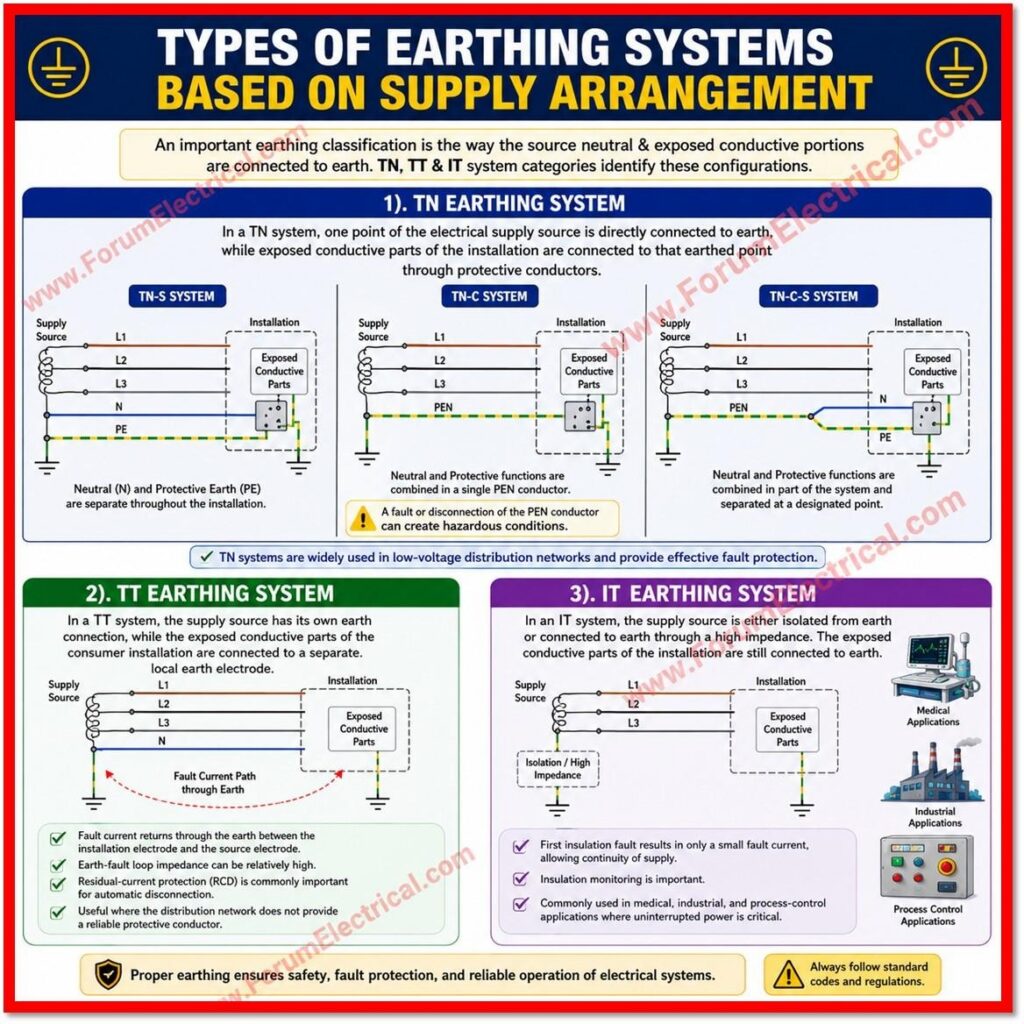

An important earthing classification is the way the source neutral & exposed conductive portions are connected to earth. TN, TT & IT system categories identify these configurations.

1). TN Earthing System

In a TN system, one point of the electrical supply source is directly connected to earth, while exposed conductive parts of the installation are connected to that earthed point through protective conductors.

TN systems are commonly divided into TN-S, TN-C, and TN-C-S arrangements.

In a TN-S system, the neutral conductor and protective conductor are separate throughout the installation. This arrangement provides a dedicated protective conductor and is widely used where a separate protective earth is required.

In a TN-C system, the neutral and protective functions are combined into a single PEN conductor.

Although this arrangement can reduce the number of conductors required which requires careful design as a fault (or) disconnection of the PEN conductor can create hazardous conditions.

In a TN-C-S system, the neutral and protective functions are combined in part of the system and separated at a designated point. This arrangement is widely used in many low-voltage distribution networks.

2). TT Earthing System

In a TT system, the supply source has its own earth connection, while the exposed conductive parts of the consumer installation are connected to a separate local earth electrode.

The fault current returns through the earth between the installation electrode and the source electrode. Because the earth-fault loop impedance can be relatively high, residual-current protection is commonly important for automatic disconnection.

TT systems can be useful where the distribution network does not provide a reliable protective conductor to the consumer installation.

3). IT Earthing System

In an IT system, the supply source is either isolated from earth or connected to earth through a high impedance. The exposed conductive parts of the installation are still connected to earth.

One major characteristic of an IT system is that the first insulation fault can result in only a small fault current, allowing continuity of supply in applications where interruption could be particularly undesirable.

Insulation monitoring is therefore important in IT systems. They are commonly associated with specialized installations such as certain medical, industrial, and process-control applications.

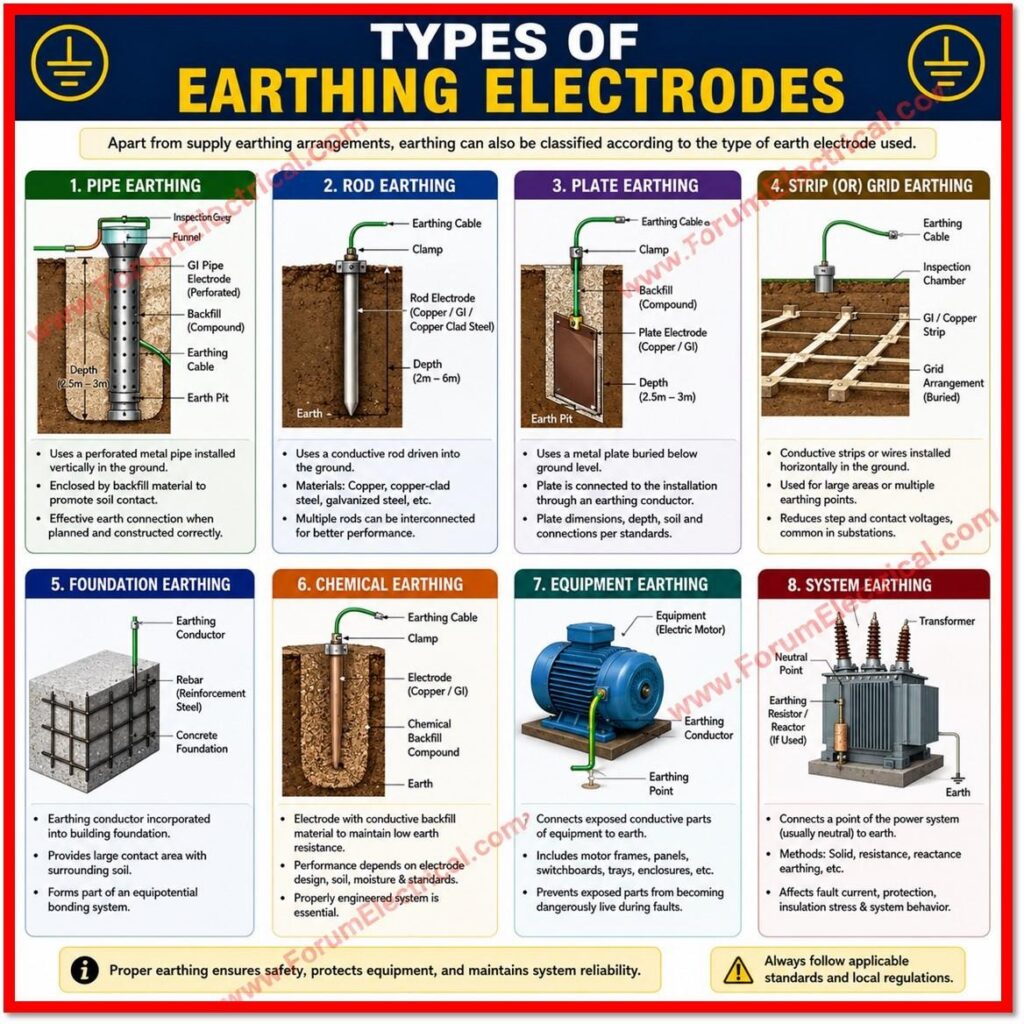

Types of Earthing Electrodes

Apart from supply earthing arrangements, earthing can also be classified according to the type of earth electrode used.

1). Pipe Earthing

Pipe earthing uses a perforated metal pipe installed vertically in the ground.

The electrode is enclosed by an appropriate backfill material to promote soil contact.

Pipe earthing is extensively utilized because it can offer an effective earth connection when planned and constructed correctly.

The required electrode diameters and installation depth are determined by soil conditions and appropriate requirements.

2). Rod Earthing

Rod earthing uses a conductive rod driven or installed into the ground.

Copper, copper-clad steel, galvanized steel, or other suitable materials may be used depending on the application and standards.

Rod electrodes are particularly useful where deep soil layers provide better conductivity than the surface soil.

Multiple rods can be installed and interconnected where a single electrode does not provide the required performance.

3). Plate Earthing

Plate earthing uses a metal plate buried below ground level. The plate is connected to the installation through an earthing conductor.

Copper and galvanized steel plates have been used for this purpose.

The electrode dimensions, burial depth, surrounding soil and connections should comply with the applicable electrical requirements.

4). Strip (or) Grid Earthing

Strip earthing involves installing conductive strips, wires (or) conductors horizontally in the ground.

It is typically used for covering a vast region or connecting several equipment earthing points.

Earthing grids are especially useful in electrical substations.

They assist in the management of ground potential rise as well as the reduction of hazardous step and contact voltages near electrical equipment.

5). Foundation Earthing

Foundation earthing incorporates an earthing conductor or suitable electrode arrangement into the building foundation. It can provide a large contact area with the surrounding soil and can form part of an equipotential bonding system.

Foundation earthing is particularly useful for modern buildings when it is incorporated during the construction stage.

6). Chemical Earthing

Chemical earthing uses an electrode together with specially selected conductive backfill material intended to maintain a suitable earth connection under varying soil conditions.

The term chemical earthing is widely used commercially, but the actual performance depends on the electrode design, soil characteristics, installation method, moisture conditions, corrosion resistance, and applicable standards. Modern installations should prioritize a properly engineered electrode system rather than relying solely on proprietary backfill materials.

7). Equipment Earthing

Equipment earthing connects conductive parts (exposed parts) of electrical equipment such as motor frames, transformer tanks, switchboards, cable trays, panels and metallic enclosures to the protective earthing system.

Its primary purpose is to avoid exposed metal parts from remaining at a dangerous voltage when there is a fault in an insulation which predominately occurs.

8). System Earthing

System earthing refers to connecting a point of the electrical power system, commonly the neutral point of a transformer or generator, to earth.

The method may include solid earthing, resistance earthing, reactance earthing, or other arrangements depending on the voltage level and system requirements. System earthing influences earth-fault current, protection coordination, insulation stress, and overall system behavior.

Importance of Proper Earthing

A well-designed earthing system gives several important advantages. It decreases the risk of electric shock, allows for a controlled path for fault current, assists in the operation of protective devices, protects electrical equipment, reduces contact and step voltage hazards, along with contributes to the general reliability of the electrical system.

Earthing is also required for lightning and surge protection, static charge dissipation, electromagnetic compatibility & the safe functioning of sensitive electrical and electronic equipment.

Earthing Testing and Maintenance

An earthing system must be inspected and checked at regular intervals. Common tests involve earth resistance measurement, protective conductor continuity testing, bonding verification and earth connection and electrode inspection.

The allowable earth resistance (or) impedance is not a single ratio that applies to all installations. The needed performance is determined by the earthing configuration, system voltage, protective device characteristics, fault-clearing needs, soil conditions & applicable standards.

Connections should also be examined for corrosion, mechanical damage, loose joints & degradation. Regular testing and maintenance help to guarantee that the earthing system continues to provide the intended safety function for the duration of the installation.

Conclusion

Different earthing systems are designed to meet different electrical safety and system-performance requirements.

TN-S, TN-C, TN-C-S, TT, and IT describe the relationship between the supply source, earth, neutral, and exposed conductive parts, while pipe, rod, plate, strip, grid, foundation, and other electrode arrangements describe practical methods of establishing an earth connection.

Selecting the correct earthing system requires consideration of the electrical network, fault protection method, installation environment, soil characteristics, equipment requirements, and relevant standards.

A well-designed, installed, tested, and properly maintained earthing system is fundamental for electrical safety and dependable power system functioning.
