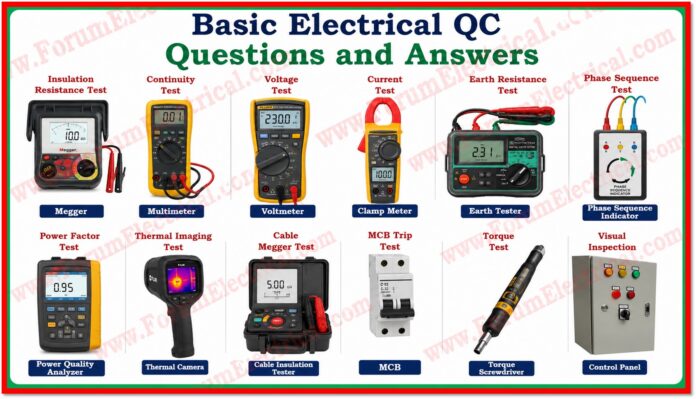

Basic Electrical QC Questions and Answers
Basic Electrical QC Questions and Answers

Quality control ensures that electrical systems, components and installations comply with applicable standards, specifications and safety requirements to achieve reliable, safe & long lasting operation.

Insulation resistance testing verifies the

  • Integrity of insulation,
  • Preventing leakage current,
  • Short circuits,
  • Equipment damage and
  • Electrical hazards.

The typical allowable voltage tolerance is ±10% which implies that the voltage should remain between 207V and 253V under normal operating conditions.

Proper grounding is verified using an earth resistance tester (or) appropriate measuring instrument.

The grounding system must have sufficiently low resistance to ensure effective fault current dissipation according to project specifications.

A continuity test confirms that there is a complete electrical circuit path without open circuits, broken conductors (or) loose connections.

Proper torque used to avoid

  • Loose connections,
  • Overheating,
  • Arcing,
  • Voltage drops and
  • Premature equipment failure

while ensuring reliable electrical performance.

A polarity test is used to confirms that live, neutral and earth conductors are connected to the correct terminals that is ensuring safe operation of electrical equipment.

Earth loop impedance should be low enough to allow protective devices to disconnect fault currents within the specified disconnection time according to IEC (or) NEC requirements.

Inspect for the loose connections, damaged insulation, missing labels, incorrect wiring, overheating, corrosion, improper clearances and defective components.

Testing verifies that circuit breakers (CB) trip at the correct current and operating time that providing effective protection against overloads & short circuits.

Review

  • Approved drawings,
  • Single-line diagrams,
  • Wiring diagrams,
  • Project specifications,
  • Inspection and test plans (ITP),
  • Method statements,
  • Manufacturer manuals and
  • Material approvals.

Proper cable identification is helps to ensure correct installation, simplifies maintenance, avoids wiring mistakes and improves troubleshooting efficiency.

An insulation resistance test measures the resistance between conductors and earth using an insulation tester (Megger) to detect insulation deterioration (or) moisture ingress.

Phase sequence testing is used to verifies the correct phase rotation of three phase systems to ensure motors rotate in the intended direction.

Cable gland inspection confirms

  • Correct gland type,
  • Proper tightening,
  • Sealing,
  • Mechanical support,
  • Strain relief and
  • Grounding continuity

where applicable.

Verify tray alignment, support spacing, fastening, grounding continuity, corrosion protection, cable segregation & tray fill percentage.

Maintaining the recommended bending radius that prevents insulation damage, conductor stress, reduced cable life & electrical failures.

Inspect correct lug size, proper crimping, correct torque, insulation, heat-shrink application, cable identification and conductor cleanliness.

Inspect the conduit routing, support spacing, bending quality, fittings, grounding continuity, sealing and protection against mechanical damage.

Busbar joint inspection ensures proper alignment, clean contact surfaces, specified tightening torque, adequate insulation clearance & reliable electrical continuity.

An earth continuity test verifies that all exposed conductive parts are effectively connected to the protective earthing system.

Verify insulation resistance, continuity, grounding, torque values, phase sequence, protective device settings, labeling, cleanliness and successful completion of all inspections.

Thermographic inspection detects abnormal heating caused by

  • Loose connections,
  • Overloaded circuits,
  • Unbalanced loads (or) defective electrical components.

The installation should comply with approved drawings, project specifications, and applicable IEC/IEEE/NEC standards, insulation resistance requirements, grounding requirements, functional testing, equipment labeling, documentation and successful completion of all required inspections before handover.

Equipment nameplates confirm that voltage, current, frequency, power rating, IP rating and short-circuit ratings match the approved design and project specifications.
