Choosing a stepper motor power supply confuses even expert engineers. Lack of voltage causes the motor to lose torque when it runs up; too much risks damage to the driver or motor windings.
Calculator

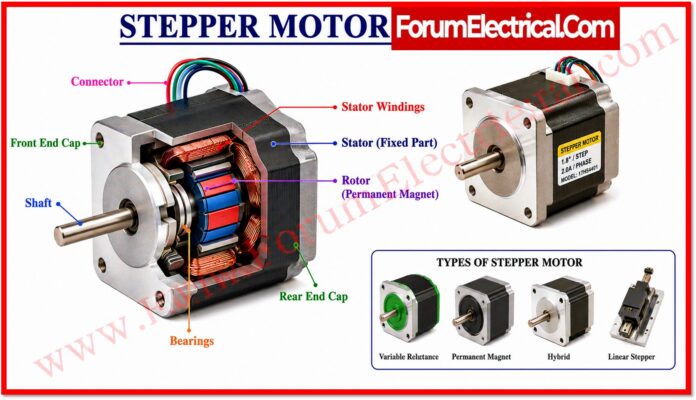

Stepper Motor Voltage Calculator
Estimate coil voltage, electrical time constant, and driver supply voltage from your motor’s nameplate values — with driver-type awareness and rating checks.
