Underground Cables MCQ

March 23, 2026

138

Underground cables are insulated conductors installed beneath the ground for safe and reliable transmission and distribution of electrical power.
They consist of a conductor, insulation, protective layers, armouring, and outer sheath, ensuring protection against moisture, mechanical damage and environmental conditions.
These cables are widely used in urban areas, substations, and industrial zones due to their safety, aesthetics and reduced fault occurrence.

These MCQ questions on underground cables are carefully prepared to help you understand key concepts such as cable construction, insulation materials, voltage ratings, advantages, disadvantages and fault characteristics.
This section is highly useful for electrical engineering students, diploma holders, competitive exams and technical interviews.

Underground Cable MCQ

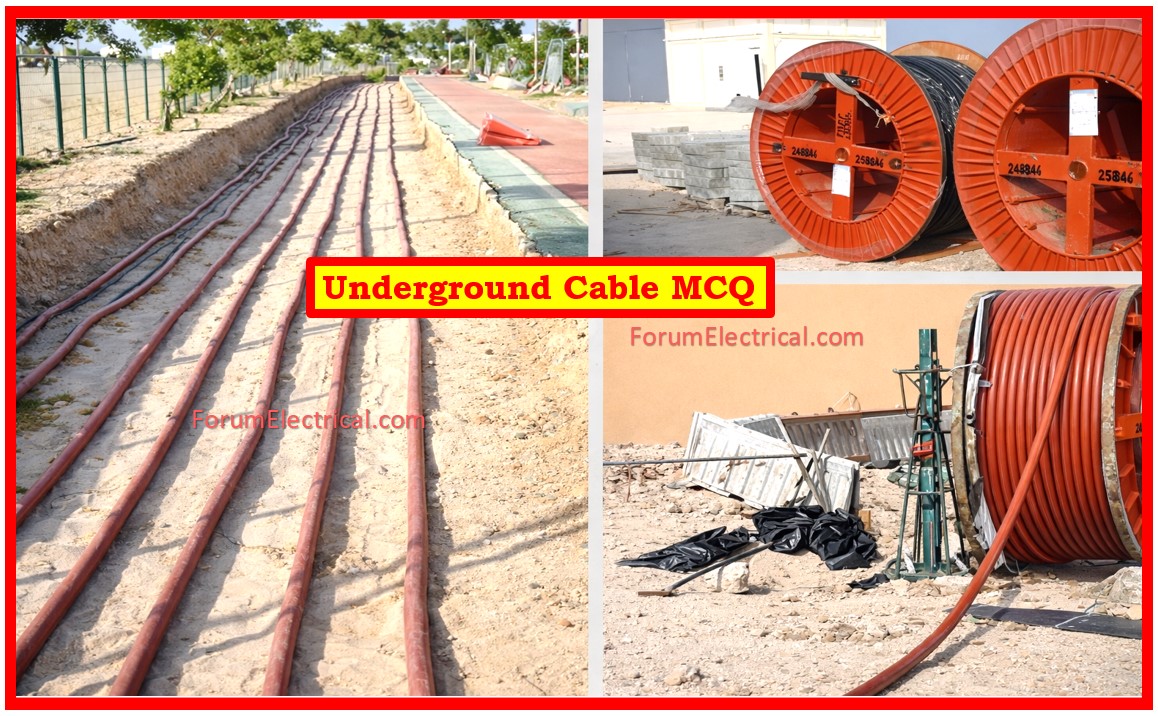

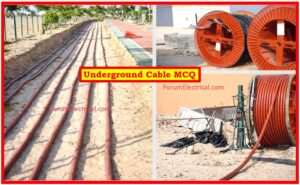

An underground cable is an electrical cable installed below the ground surface to transmit or distribute power safely and reliably.

It consists of a conductor (usually copper or aluminum), surrounded by insulation, protective bedding, armouring and an outer sheath to protect against moisture, mechanical damage, and environmental conditions.

Underground cables are widely used in urban areas, substations and industrial plants where overhead lines are impractical or unsafe. They provide better reliability, improved safety and enhanced aesthetics, but are generally more expensive and harder to maintain compared to overhead lines.

1 / 25

Category: Underground Cable

1. Material with high insulation but absorbs moisture

A. PVC

B. Conductor

C. Vulcanized rubber

D. XLPE

2 / 25

Category: Underground Cable

2. Least temperature resistance insulation

A. VIR

B. Gutta percha

C. Rubber

D. PVC

3 / 25

Category: Underground Cable

3. IE Rule for earthed terminal

A. IE 33

B. IE 61

C. IE 67

D. IE 88

4 / 25

Category: Underground Cable

4. Ratio of max to min dielectric stress

A. (D/d)½

B. (D/d)²

C. (D/d)

D. (d/D)

5 / 25

Category: Underground Cable

5. Insulation resistance of cable

A. Increase, increase

B. Increase, decrease

C. Decrease, decrease

D. Decrease, increase

6 / 25

Category: Underground Cable

6. Maximum potential gradient occurs in

A. Conductor

B. Insulation

C. Outer sheath

D. None

7 / 25

Category: Underground Cable

7. Minimum aluminium cable size for lightning circuits

A. 1.1 sq.mm

B. 1.5 sq.mm

C. 2.4 sq.mm

D. 3.6 sq.mm

8 / 25

Category: Underground Cable

8. Insulation resistance for 100 km cable

A. 1 MΩ

B. 10 MΩ

C. 0.1 MΩ

D. 0.01 MΩ

9 / 25

Category: Underground Cable

9. Inter sheaths in cables are used to

A. Minimize charging current

B. Minimize stress

C. Uniform stress distribution

D. Minimize voltage

10 / 25

Category: Underground Cable

10. Impregnated paper is used in

A. Armature

B. High voltage cables

C. Commutator

D. HT line

11 / 25

Category: Underground Cable

11. Main drawback of underground system

A. Lightning

B. Atmospheric hazards

C. High initial cost

D. Induction interference

12 / 25

Category: Underground Cable

12. Attenuation & propagation constants apply to

A. Both cables & lines

B. Only transmission lines

C. Only cables

D. Neither

13 / 25

Category: Underground Cable

13. Transmitted voltage wave at junction

A. 30 kV

B. 20 kV

C. 80 kV

D. −30 kV

14 / 25

Category: Underground Cable

14. For LV applications (<1 kV), cables used are

A. Plastic

B. Paper insulated

C. Oil-filled

D. Single-core

15 / 25

Category: Underground Cable

15. Loading of a cable is done to:

A) Increase inductance
B) Increase leakage resistance
C) Decrease leakage resistance
D) Achieve distortionless condition

A. 1, 3 and 4

B. 1 and 3

C. 2 and 4 only

D. 1 and 4 only

16 / 25

Category: Underground Cable

16. ACSR conductor with 25 aluminium & 7 steel strands is

A. 25/7

B. 7/25

C. 50/15

D. 15/50

17 / 25

Category: Underground Cable

17. Least number of faults occur in

A. Transmission lines

B. Cables

C. Switchgears

D. Transformers

18 / 25

Category: Underground Cable

18. Best system for 60 km underground transmission:

A. Single-phase AC

B. Three-phase AC

C. High voltage AC

D. DC transmission

19 / 25

Category: Underground Cable

19. Power distribution by cable is generally adopted for

A. Less than 10 km

B. Above 10 km

C. Less than 50 km

D. Above 50 km

20 / 25

Category: Underground Cable

20. Leakage resistance of 50 km cable = 1 MΩ. For 100 km cable

A. 0.5 MΩ

B. 2 MΩ

C. 0.66 MΩ

D. None

21 / 25

Category: Underground Cable

21. Capacitance between any two cores of a 3-core cable is 3 μF. Capacitance per phase is

A. 1.5 μF

B. 6 μF

C. 1 μF

D. None of the above

22 / 25

Category: Underground Cable

22. Air pockets in HV cables have _____ permittivity and _____ electric field

A. High, high

B. Low, low

C. Low, high

D. High, low

23 / 25

Category: Underground Cable

23. In terms of cost, overhead transmission line is better than underground transmission line in

A. Insulation

B. Right of way

C. Visibility

D. None of these

24 / 25

Category: Underground Cable

24. Property of absorbing moisture from the atmosphere is

A. Solubility

B. Viscosity

C. Porosity

D. Hygroscopicity

25 / 25

Category: Underground Cable

25. The material commonly used for sheaths of underground cable is

A. Lead

B. Steel

C. Rubber

D. Copper

Your score is

The average score is 25%
