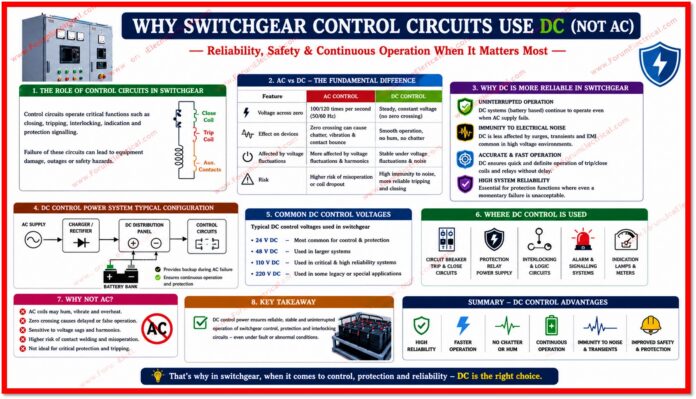

Why Switchgear Control Circuits use DC (Not AC)?
Why Switchgear Control Circuits use DC (Not AC)?

In high-voltage (HV) substations and industrial power systems, DC (Direct Current) is the preferred power source for switchgear control and protection circuits even though the surrounding power network operates on AC.

This is not an accident of design but an engineering choice rooted in reliability.

The major reason is that a DC control system continues to operate even if the AC supply is lost during a fault ensuring that important protection functions remain available at the exact location they are required most.

Circuit breakers, protection relays, and alarm systems form the last line of defence against equipment damage, fire, and personnel hazard during electrical faults.

If the power source for these systems were tied directly to the AC network, a fault severe enough to collapse the AC supply could simultaneously disable the very protection scheme meant to isolate that fault. DC control power, sourced from a dedicated battery system, breaks this dependency and guarantees that protection and control functions remain live under the worst possible system conditions.

Reliable During AC Supply Failures

A battery backed DC system continues supplying power to protection relays, trip coils and control circuits even during a complete AC outage, so protection is never left blind during the fault it is meant to clear.

Fast and Reliable Tripping

DC provides dependable, high-energy operation of circuit breaker trip and close coils that is enabling rapid and positive fault isolation without the delays associated with AC zero crossing function.

Independent Power Source

Substation battery banks and battery chargers provide an autonomous DC supply that is decoupled from the health of the primary power system which is ensuring uninterrupted control power at all times.

Reduced Risk of Synchronization Issues

Unlike AC, DC has no frequency or phase angle to manage which simplifies circuit design, avoids synchronization complications and improves overall operational reliability.

A substation DC control system is built from a small number of well-defined components, each with a specific role in keeping protection and control circuits alive under all operating conditions.

The table below summarises these components.

ComponentFunction
Battery BankStores energy and supplies autonomous DC power during AC supply interruptions
Battery ChargerKeeps the battery bank continuously charged and float-maintained from the AC mains
DC Distribution PanelDistributes and protects DC feeders to relays, coils, and control circuits
Protection RelaysContinuously monitor system parameters and initiate tripping on fault detection
Trip Coil / Close CoilMechanically operates the circuit breaker on command from the protection scheme
Annunciation & Alarm CircuitsProvide visual and audible indication of abnormal conditions to operators

The DC voltage level selected for a control system depends on the scale of the installation, the length of control cabling and the coil ratings of the connected equipment. Commonly used levels are shown below.

DC VoltageTypical Application
24 VDCSmall control and automation systems
48 VDCTelecommunications and control equipment
110 / 125 VDCIndustrial plants and substations
220 VDCHigh-voltage transmission substations

•  Ensures dependable breaker tripping during fault conditions.

•  Maintains full control and protection operation during complete AC power loss.

•  Improves the personnel and equipment safety through guaranteed protection availability.

•  Enhances all the overall power system reliability and protection performance.

•  Supports the continuous monitoring and control of essential substation assets.

It is important to distinguish between the power that is delivered to electrical loads and the power that operates the protection and control system itself.

AC remains the standard for supplying motors, lighting, and general electrical loads because it is efficient to generate, transform, and transmit over long distances.

However when it comes to switchgear protection and control circuits, DC remains the industry standard as it delivers the reliability needed to operate safely under fault conditions which is independent of the state of the AC network.

This separation of function of AC for bulk power delivery and DC for protection and control is a foundational principle in substation design.

It reflects a simple but important engineering aspects: the system responsible for detecting and clearing faults must not depend on the same power source that the fault itself may disrupt.

By maintaining a physically & electrically independent DC supply engineers ensure that protection schemes remain fully functional accurately when the AC system is most compromised.

The use of DC power in switchgear control and protection circuits is a deliberate reliability measure rather than a legacy convention.

Battery banks, chargers, and DC distribution panels work together to guarantee that trip coils, protection relays and alarm circuits remain energised regardless of the condition of the AC supply.
