A Battery Size Calculator is an important electrical engineering online calculator tool that assist to determine the required battery capacity in Ampere-hours (Ah) for a specific load & operating duration.
Calculator
Battery Size Calculator
Calculation Results
Related Electrical Calculators
Related Electrical Calculators
All Categories
Electrical Converters
Electrical Machines Calculators
Transformer Calculators
Power Systems Calculators
Battery Calculators
Electrical Engineering Excel Calculators
Unit Converters
Click here for more Electrical Calculators
You can also follow us on Facebook and Linkedin to receive daily updates.
Proper battery sizing is important for ensuring reliable
- Power backup,
- Maximizing battery life and
- Preventing excessive battery discharge.
Battery sizing is widely utilized in
- Solar power systems,
- UPS systems,
- Telecommunications,
- Substations,
- Emergency lighting systems,
- Control panels and
- Industrial backup power applications.
By calculating the correct battery capacity, engineers & technicians can select a battery that provides sufficient energy while maintaining the recommended depth of discharge (DoD).
This calculator determines the required battery size based on load demand, battery voltage, operating duration, battery type & the desired remaining charge percentage.

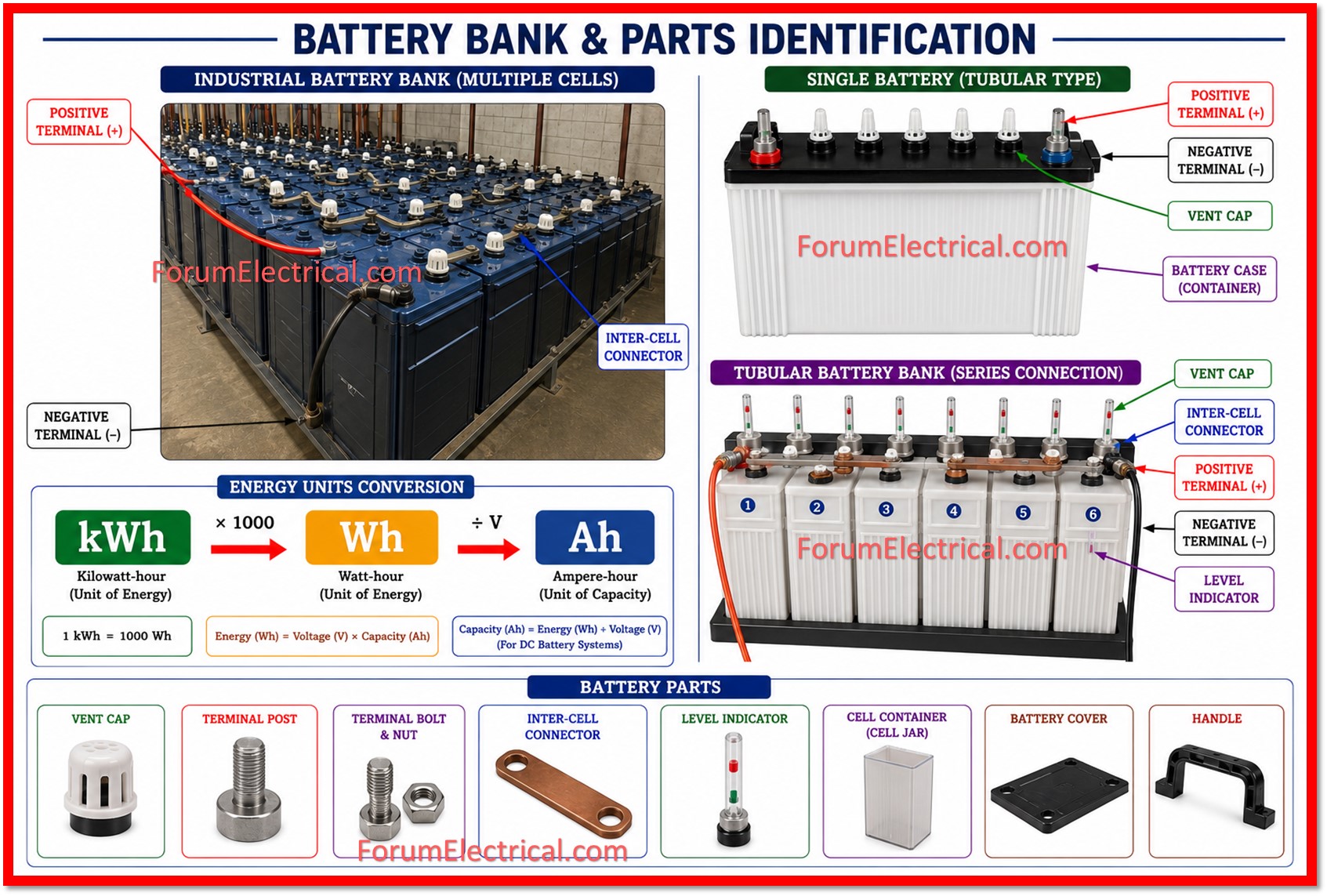

What is Battery Capacity?
Battery capacity represents the amount of electrical energy that a battery can store and deliver.
It is commonly measured in Ampere-hours (Ah).
Example
A 100 Ah battery can theoretically supply:
- 100 A for 1 hour
- 50 A for 2 hours
- 10 A for 10 hours
- 5 A for 20 hours
Actual performance depends on battery type, temperature, discharge rate and battery age.
Input Parameters
Load
The load represents the electrical power consumed by the equipment connected to the battery.
The calculator allows the load to be entered in:
- Watts (W) and
- Amperes (A).
Examples
LED Lighting System: 100 W
DC Control Circuit: 10 A
Communication Equipment: 250 W
For varying loads an average load value must be used.
Battery Voltage (VDC)
Battery voltage is the DC operating voltage of the battery system.
Common battery voltages include:
- 12 V
- 24 V
- 48 V
- 110 V
- 220 V
The voltage value is required when the load is specified in watts.
Required Duration
The duration symbolizes how long the battery must supply power to the connected load.
Examples
- Emergency lighting: 2 hours
- UPS backup: 4 hours
- Telecommunications system: 8 hours
- Substation control system: 24 hours
Longer backup durations need larger battery capacities.
Battery Type
The calculator supports
Lead-Acid Battery
Lead-acid batteries are commonly utilized in:
- Substations,
- UPS systems,
- Emergency lighting and
- Industrial backup systems.
To maximize battery life, lead-acid batteries must generally not be discharged below 50% state of charge.
Lithium-Ion Battery
Lithium-ion batteries provide
- Higher energy density,
- Faster charging,
- Longer cycle life and
- Lower maintenance.
Lithium batteries can safely operate with deeper discharge levels compared to lead-acid batteries.
Remaining Charge Percentage
Remaining charge represents the battery capacity that must remain after the backup period.
Typical recommendations are:
- Lead-acid battery: 50%
- Lithium-ion battery: 20%
Maintaining reserve capacity improves battery lifespan and reliability.
How to calculate Battery Current?
When the load is entered in watts and the battery current is calculated using the following formula:
Current (A) = Power (W) / Voltage (V)
Example
Given
Power = 240 W
Voltage = 24 V
Solution
Current = 240 / 24
Current = 10 A
Answer
The battery should supply 10 amperes to the load.
How to calculate Battery Size?
Battery capacity is determined by considering the current that is in operating duration and allowable battery discharge.
The calculation is:
Battery Capacity (Ah) = Current x Duration ÷ Usable Battery Fraction
Where
Current – Load current in (A) amperes
Duration – Required backup time in hours
Usable Battery Fraction = (100 − Remaining Charge %) ÷ 100
Example
Given
Current = 10 A
Duration = 20 h
Remaining Charge = 50%
Solution
Usable Battery Fraction
(100 – 50) / 100 = 0.5
Battery Capacity
10 X 20 / 0.5
Battery Capacity = 400 Ah
Answer
A minimum battery capacity of 400 Ah is required.
Battery Discharge Rate
Battery discharge rate indicates how quickly the battery is discharged.
It is commonly expressed as a C-rate.
The discharge rate is calculated as:
C-rate = Usable Battery Fraction / Duration
C-Rate
The C-rate is a standardized method of expressing battery charging and discharging currents.
1C
A battery rated at 1C can discharge fully in 1 hour.
Battery Discharge Rate Specification
| C-Rate | Discharge Time |
| 5C | 12 Minutes |
| 2C | 30 Minutes |
| 1C | 1 Hour |
| 0.5C | 2 Hours |
| 0.2C | 5 Hours |
| 0.1C | 10 Hours |
| 0.05C | 20 Hours |
Battery manufacturers specify the maximum recommended discharge rate to ensure safe and reliable operation.
Advantages of using a Battery Size Calculator
Using a battery size calculator provides several advantages:
- Accurate battery capacity selection,
- Improved system reliability,
- Extended battery service life,
- Prevention of the excessive battery discharge,
- Reduced maintenance costs,
- Better compliance with engineering design standards and
- Faster system design & verification.
Proper battery sizing used to ensure that essential loads remain operational during power interruptions
Applications of Battery Sizing
Battery size calculations are commonly used in:
UPS Systems
To determine the battery capacity required for uninterrupted power during utility failures.
Solar Energy Systems
To provide energy storage for nighttime operation and cloudy weather conditions.
Substations
For DC control systems, protection relays, emergency tripping circuits, and communication equipment.
Telecommunication Systems
To maintain network operation during power outages.
Emergency Lighting Systems
To ensure adequate lighting during emergencies and evacuation procedures.
Industrial Control Panels
To support PLCs, SCADA systems and important automation equipment.
Conclusion
A Battery Size Calculator is an essential engineering tool for determining the correct battery capacity required for a specific application.
By considering load current, operating duration, battery type and reserve capacity the calculator helps engineers & technicians select batteries that provide reliable performance & longer service life.
Whether used for substations, UPS systems, telecommunications, solar installations (or) industrial control systems an accurate battery sizing is essential for maintaining uninterrupted power and ensuring system reliability.
Understanding battery capacity, discharge rates and C-ratings enables informed battery selection and efficient power system design.
