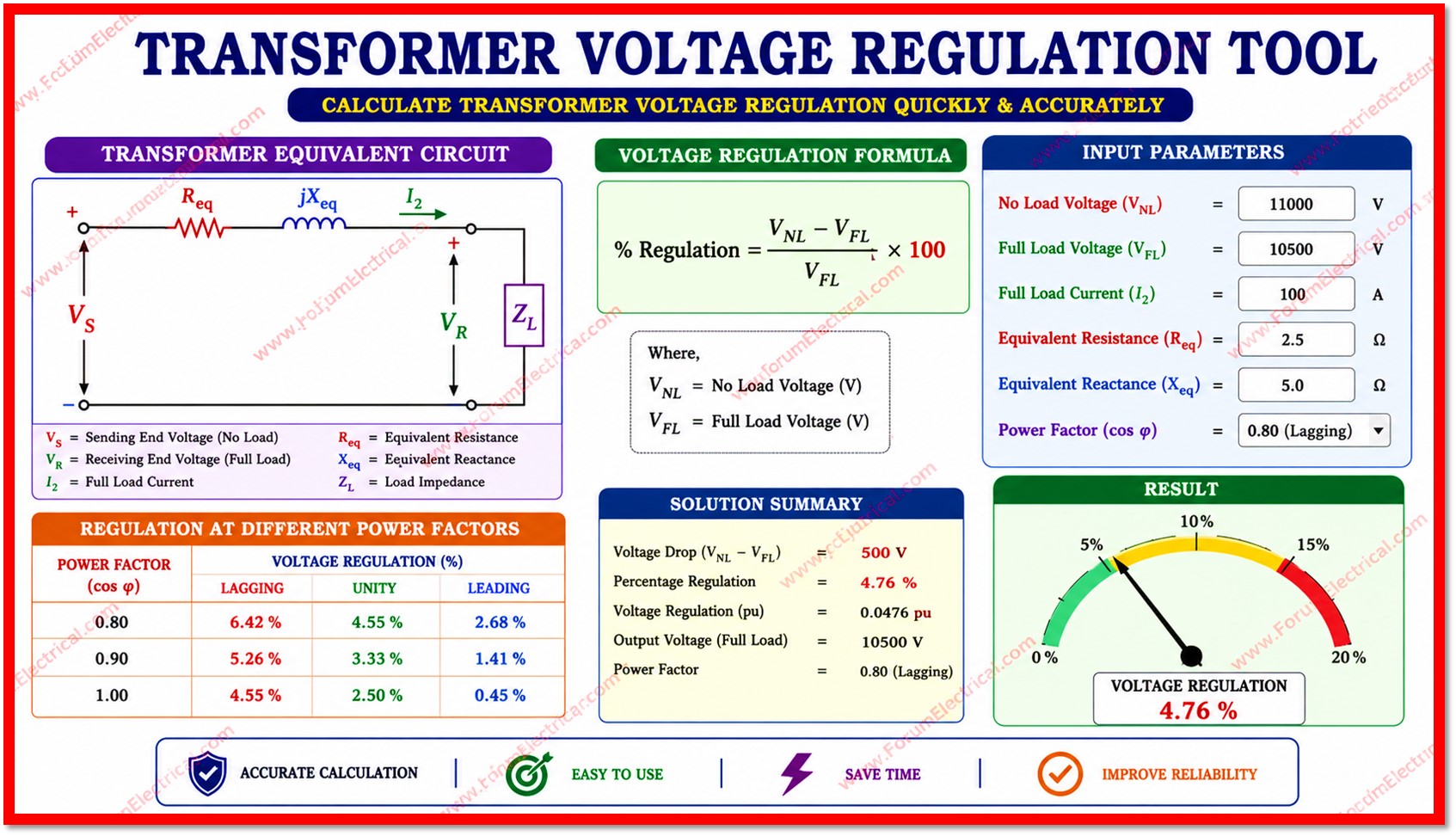

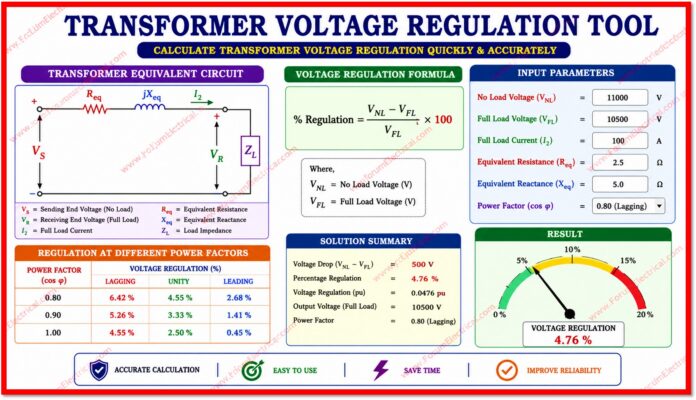

The Transformer Voltage Regulation Tool is an online calculator tool designed to compute transformer voltage regulation in accordance with IEEE standards.

Click here for more Electrical Calculators

You can also follow us on Facebook and Linkedin to receive daily updates.

It supports both single-phase and three-phase power transformers and provide two calculation methods:

• IEEE Approximate formula and
• Exact Phasor method

enabling accurate analysis for a wide range of electrical power system applications.

Voltage regulation is a fundamental parameter in transformer design and power system planning.

It explains the percentage change in secondary terminal voltage between no-load and full-load conditions referred to the full-load voltage.

Poor voltage regulation results in voltage fluctuations that may damage sensitive equipment, cause process interruptions and reduce power quality.

Theory of Voltage Regulation

Voltage Regulation (VR%) is mathematically defined as the difference between the secondary no-load voltage (V2nl) and the secondary full load voltage (V2fl) expressed as a percentage of the full-load voltage.

VR% = ((V2nl - V2fl) / V2fl) x 100

A lower VR% indicates better regulation.

Distribution transformers typically target VR% below 5% while power transformers can tolerate slightly higher values depending on application.

IEEE Approximate Method

The IEEE approximate formula provides a quick & sufficiently accurate estimate for most practical applications where impedance values are relatively small.

VR% (approx) = %R · cos(φ) ± %X · sin(φ)

In this formula, the "+" sign applies to lagging (inductive) power factor loads & the "−" sign applies to leading (capacitive) power factor loads.

This approximation is accurate to within 0.5% for the most standard transformers & is widely used for quick sizing and evaluation.

Exact Phasor Method

The Exact Phasor method solves the full equivalent circuit using the vector algebra.

It provides significantly greater accuracy for transformers with high per-unit impedance (above 5%) (or) when accurate results are required for protection coordination and system studies.

The secondary full-load voltage is derived as:

V2fl = -A + sqrt(V2nl² - B²) A = I_act · (Req · cosφ ± Xeq · sinφ) B = I_act · (Xeq · cosφ ∓Req · sinφ)

Calculator Input Parameters

Auto Calculated Outputs

The calculator derives & displays the following results automatically upon pressing

Calculate:

Impedance Input Modes

Mode A: Enter Resistance & Reactance in Ohms

Select this mode when the transformer equivalent circuit parameters are available from test reports (or) manufacturer data sheets in physical units.

The calculator converts these to percentage values internally:

%R = (Req × I_FL / V2nl) × 100

%X = (X_eq × I_FL/ V2nl) × 100

This mode is preferred for detailed analysis using short circuit test data (or) when the transformer nameplate data only lists ohmic parameters.

Mode B: Enter %R and %X Directly

Select this mode when the transformer nameplate (or) test certificate already expresses impedance as percentage values.

This is the most common format for IEC & IEEE nameplate data.

If only %Z and %R are known then leave %X blank & the calculator will calculate:

%X = √(%Z² − %R²)

Note: %Z should be greater than (or) equal to %R for this auto computation to be valid.

Voltage Regulation Benchmarks

Solved Example

The following example demonstrates use of both calculation methods for a standard distribution transformer.

Step 1: Calculate rated secondary full load current

I_FL= 1000 x 1000 / (1.7321 x 415)

I_FL= 1390.0 A

Step 2: Convert ohmic (Ω) values to percentage

%R = (0.0648 x 1390.0 / 415) x 100 = 2.173 %

%X = (0.1552 x 1390.0 / 415) x 100 = 5.199 %

%Z = √(2.173² + 5.199²) = 5.639 %

Step 3: IEEE Approximate VR% (cosφ = 0.85, sinφ = 0.5268)

VR% ≈ 2.173 x 0.85 + 5.199 x 0.5268

VR% = 1.847 + 2.739

VR% = 4.586 %

Step 4: Exact Phasor VR%

A = 1390 x (0.0648×0.85 + 0.1552×0.5268) = 1390 x 0.13685 = 190.22

B = 1390 x (0.1552×0.85 − 0.0648×0.5268) = 1390 x 0.09812 = 136.38

V2fl = -190.22 + sqrt(415² − 136.38²)

V2fl = -190.22 + 394.43 = 397.0 V

VR% = (415 − 397.0) / 397.0 x 100 = 4.534 %

Applicable Standards & References
